LAC Vision Stage Series Indoor Slim Dual-sided LED Display V1.0
The LAC Vision Indoor Slim Dual-Sided LED Display is a breakthrough high-density designed dual-sided display product. It integrates high brightness, high contrast ratio, and high refresh rate into one unit, with a dual-sided architecture ensuring high-definition output on both front and rear sides. Through an integrated dual-channel loT control system, it enables independent content management and flexible control for each side, allowing easy switching between different content and mirror modes. The cabinet features an ultra-thin profile and a quick-release structural design for easy installation and convenient maintenance. Specifically engineered for scenarios requiring multi-perspective, immersive presentation, it is perfectly suited for spaces such as shopping mall atriums, high-end retail island displays, flagship store windows, high-speed rail stations, and airport check-in islands. It offers an innovative visual solution for digital signage, product interactive demonstrations, and immersive art installations.

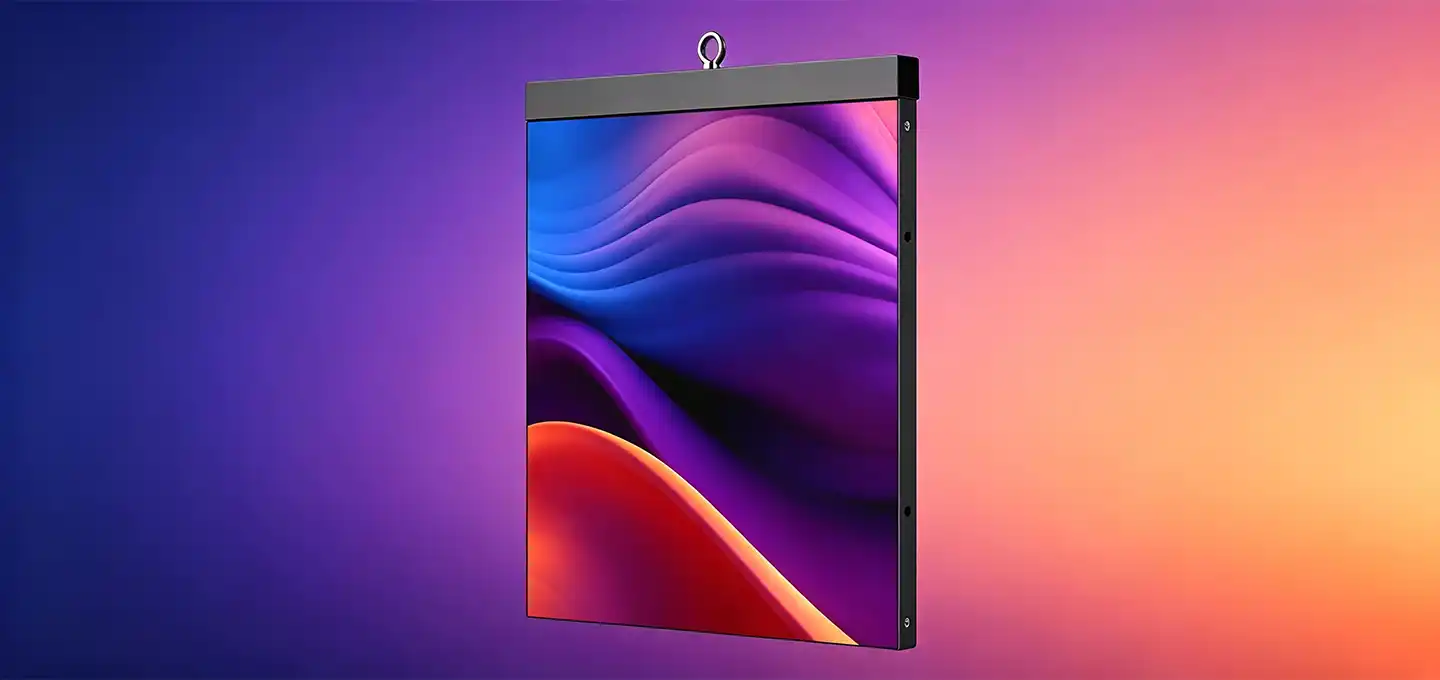

Ultra-Slim and Lightweight Body
Only 26mm thick and 6.5kg lightweight design greatly reduces installation load. Slim profile fits modern commercial spaces and simplifies handling, hanging, and positioning.
Independent Dual-Side Display Control
Supports separate content playback on front and rear screens with dual-channel IoT control. Allows independent scheduling, mirror mode, and different content for flexible commercial use.
High-End Visual Performance
3840Hz high refresh rate and broadcast-grade grayscale deliver smooth, detailed images. 160° wide viewing angle ensures clear, consistent color from any viewing direction.
Fanless and Energy-Efficient Cooling
Innovative fanless heat dissipation structure runs quietly and saves energy. No air conditioning required, creating a comfortable environment for shopping malls and stations.

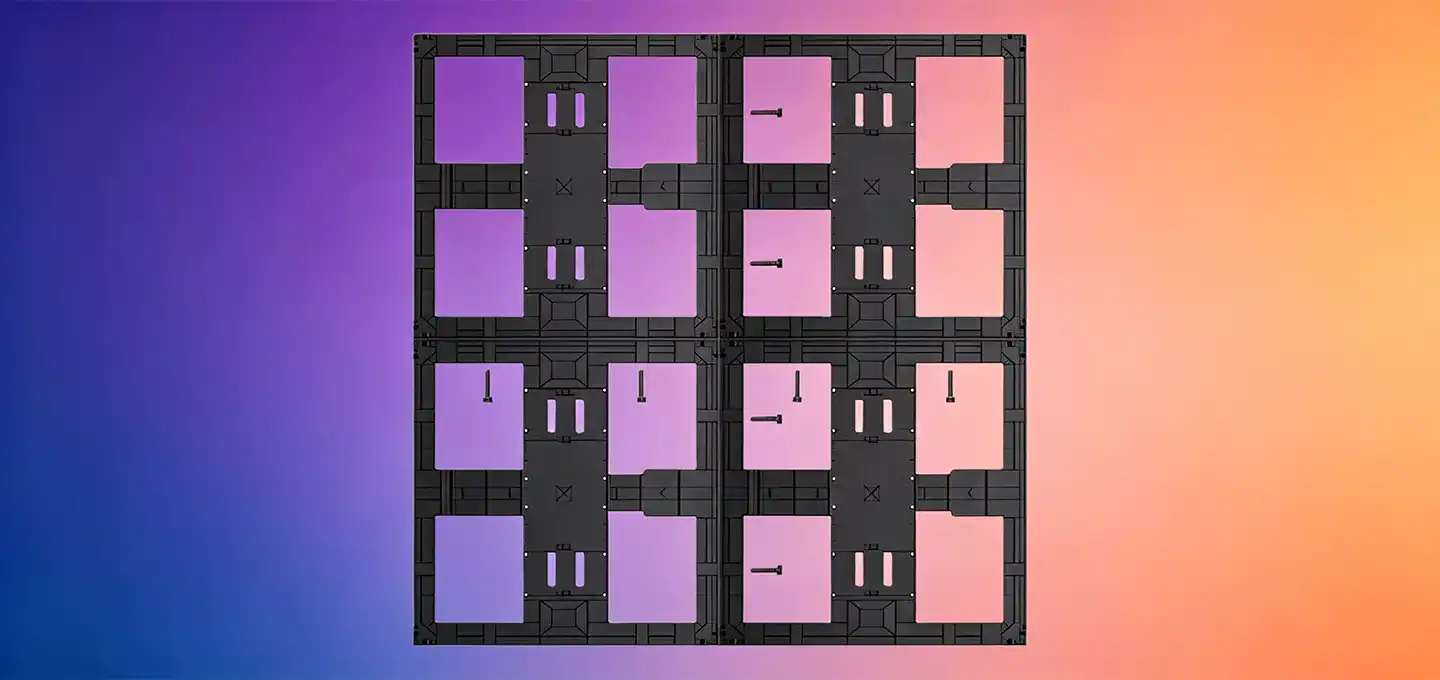

Seamless Splicing and Flexible Expansion
Standardized four-side mounting enables easy seamless splicing via screw adjustment. Supports vertical extension up to 5m and unlimited horizontal expansion for large screens.

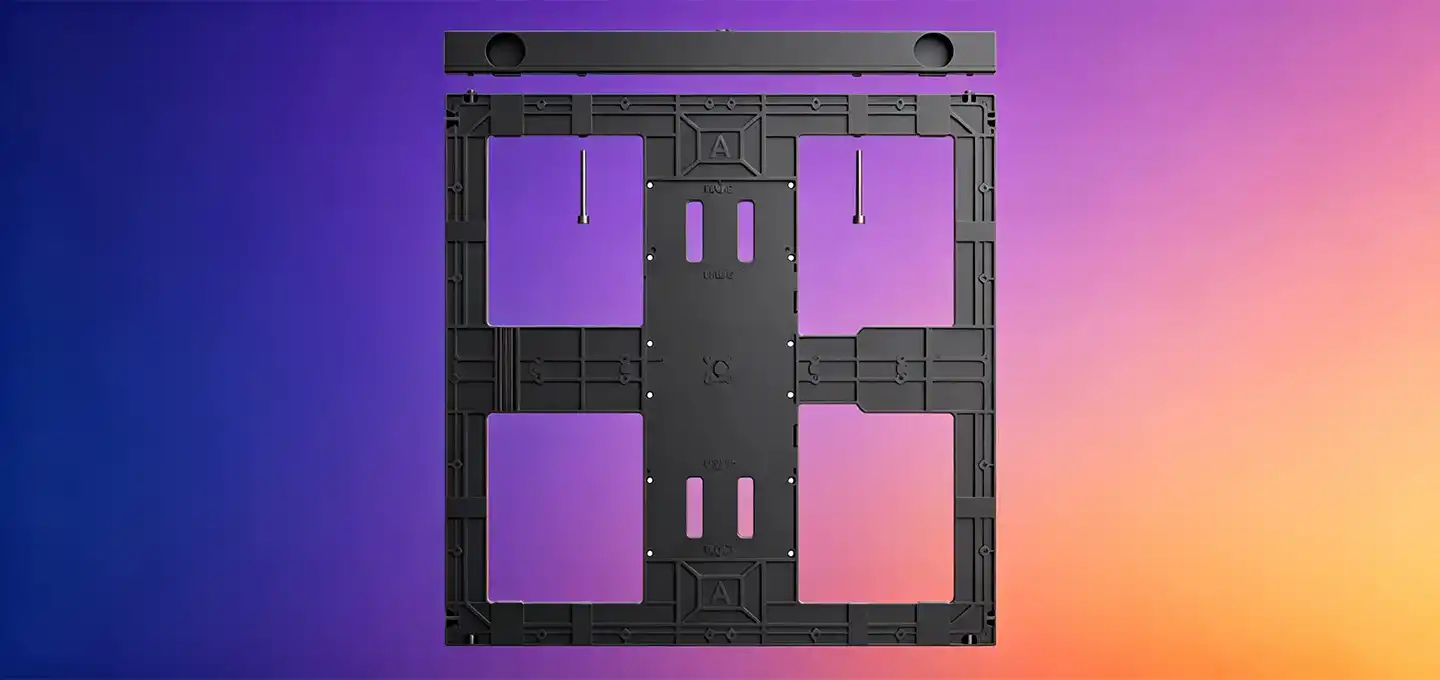

Tool-Free and Dual-Side Maintenance
Cable-free rigid connection ensures stable signal and power transmission. Front and rear dual-channel quick-release design allows fast, tool-free installation and servicing.
| LAC Vision Stage Series Indoor Slim Dual-Sided LED Display | ||||
| Model | LC1.95DS | LC2.604DS | LC3.91DS | |

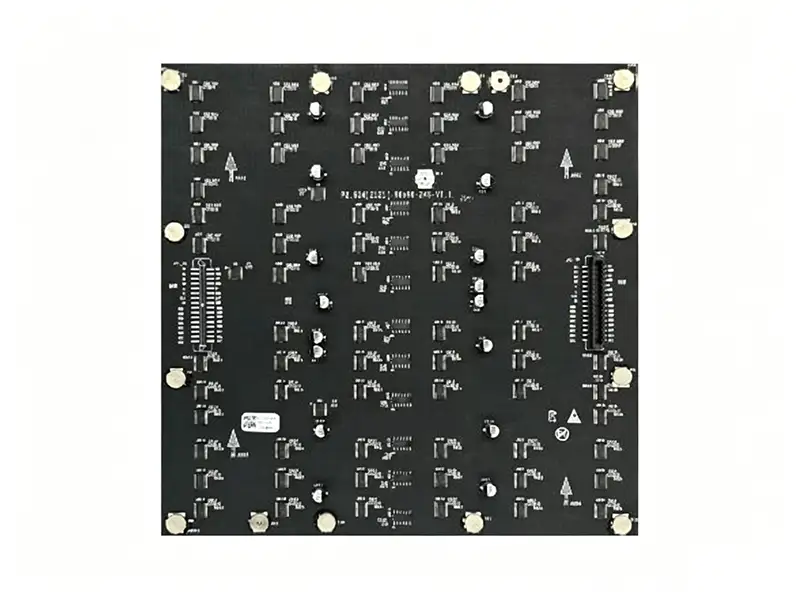

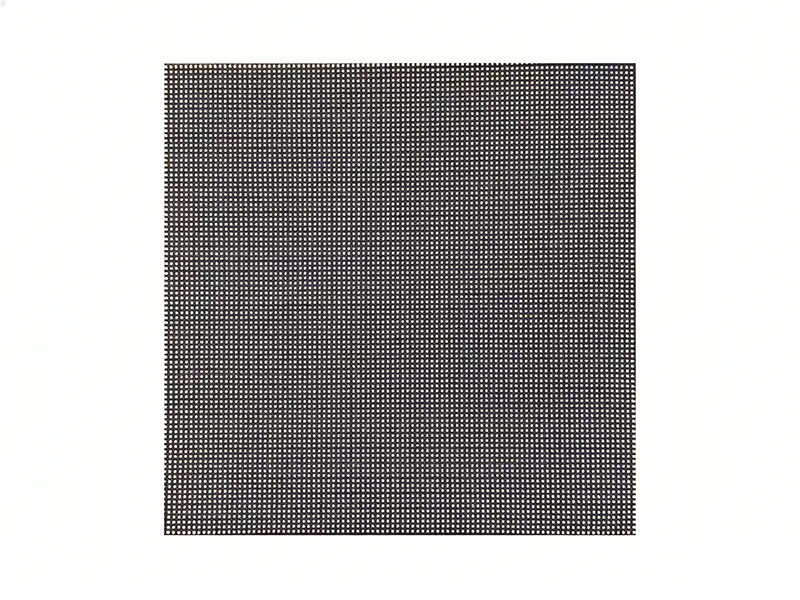

| Module Parameters | Pixel Structure | SMD1415 3-in-1 | ||
| Pixel Pitch (mm) | 1.95 | 2.604 | 3.91 | |
| Module Size (W×H×D) (mm) | 250×250×6.5 | |||
| Module Resolution (W×H) (dot) | 128×128 | 96×96 | 64×64 | |
| Pixel Density (dot/㎡) | 262144 | 147456 | 65536 | |
| Cabinet Parameters | Unit Module Composition | 2×2 | ||
| Cabinet Resolution (W×H) (dot) | 256×256 | 192×192 | 128×128 | |
| Cabinet Dimensions (W×H×D) (mm) | 500×500×26 | |||
| Cabinet Weight (kg/piece) | 6.5±0.5 | |||
| Maintenance Method | Front Maintenance | |||
| Protection Rating | IP30 | |||
| Cabinet Material | Die-Cast Aluminum | |||
| Flatness (mm) | ≤0.1 | |||
| Optical Parameters | Brightness (cd/㎡) | ≥800 | ||
| Color Temperature (K) | 6500 (2000-9500 Adjustable) | |||
| Viewing Angle | Horizontal 160°/Vertical 160° | |||
| Brightness/Chromaticity Uniformity | ≥98% | |||
| Maximum Contrast Ratio | 5000:1 | |||
| Processing Performance | Drive Method | Constant Current Drive 1/32 S | ||
| Frame Change Frequency (Hz) | 50/60 | |||
| Refresh Rate (Hz) | 3840~7680 | |||
| Processing Depth (bits) | 14-16 | |||
| Electrical Parameters | Power Supply Requirements | AC100-240V 50/60Hz | ||
| Peak Power Consumption (W/㎡) | ≤640 | |||
| Average Power Consumption (W/㎡) | ≤210 | |||
| Usage Parameters | Typical Lifespan (h) | ≥100000 | ||
| Installation Method | Suspension Mounting, Fixed Installation | |||
| Operating Temperature/Humidity Range | -10℃~50℃ / 10%~60%RH (No Condensation) | |||
| Storage Temperature/Humidity Range | -20℃~60℃ / 10%~65%RH (No Condensation) | |||
