LAC Vision Transparent Film Display

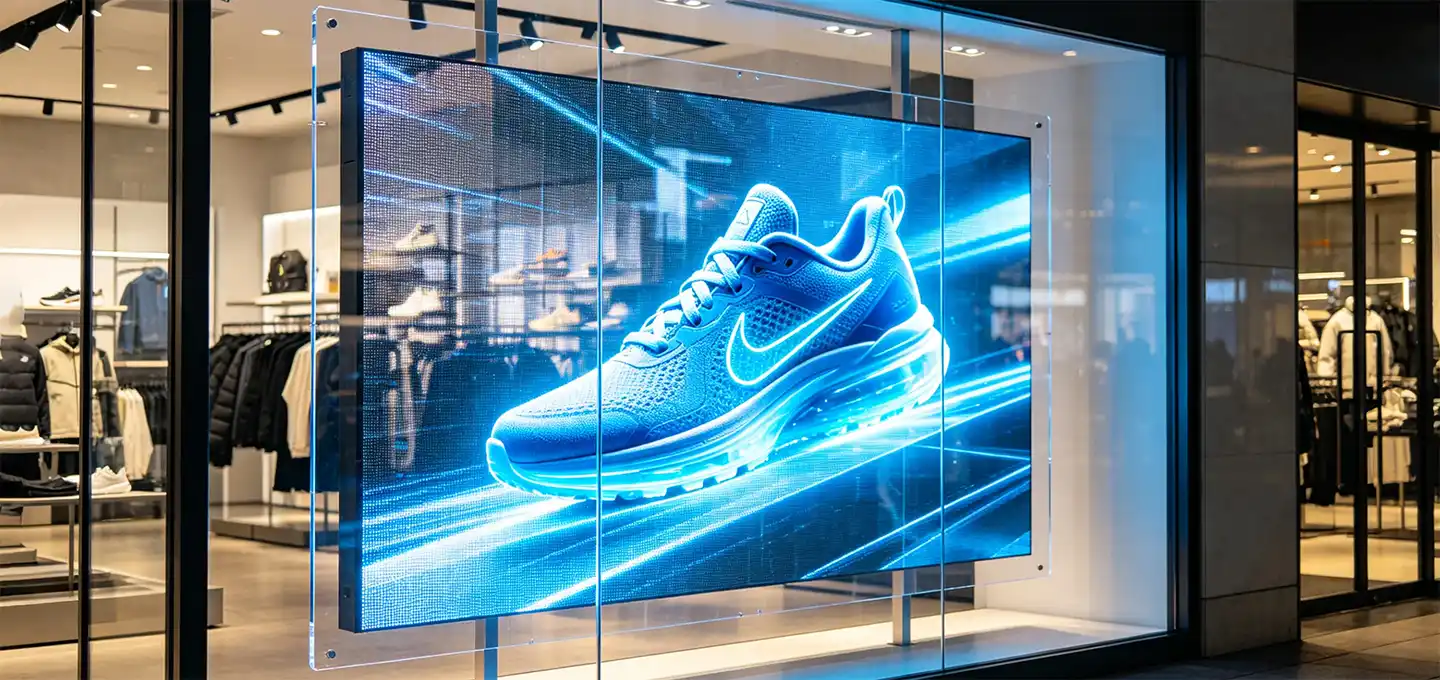

LAC Vision LED Transparent Film Display is an innovative display product utilizing ultra-thin flexible substrate technology. The transparent film light board employs transparent crystal film material with etched transparent mesh circuits on the surface, followed by a vacuum encapsulation process after component placement. Its core innovation lies in the directpackaging of LED chips onto high-transmittance polymer film, delivering exceptional light transmission, slim profile, and strong technological aesthetic. With over 85% transmittance,it seamlessly integrates with glass curtain walls without compromising building lighting,while producing vibrant imagery with enhanced color performance for optimal visual experiences. Widely applied in glass environments including architectural glass curtain walls, display windows, and glass railings, it is particularly suited for premium retail storefronts, automotive showrooms, and digital art installations requiring both transparency and visual impact.
Ultra-High Transparency and Invisible Design
Uses high-transmittance crystal film with up to 90% light transmittance, keeping glass fully see-through. Nano LED chips are fully encapsulated and invisible when powered off, blending into architecture.

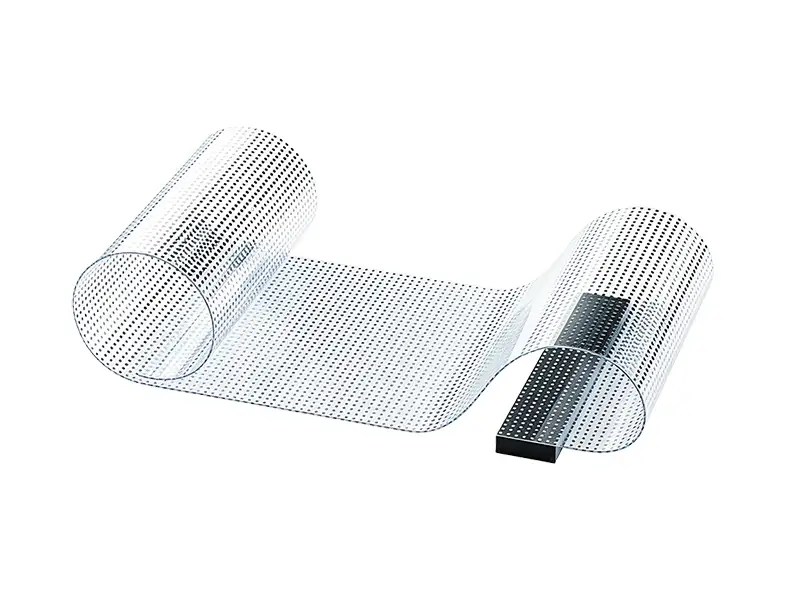

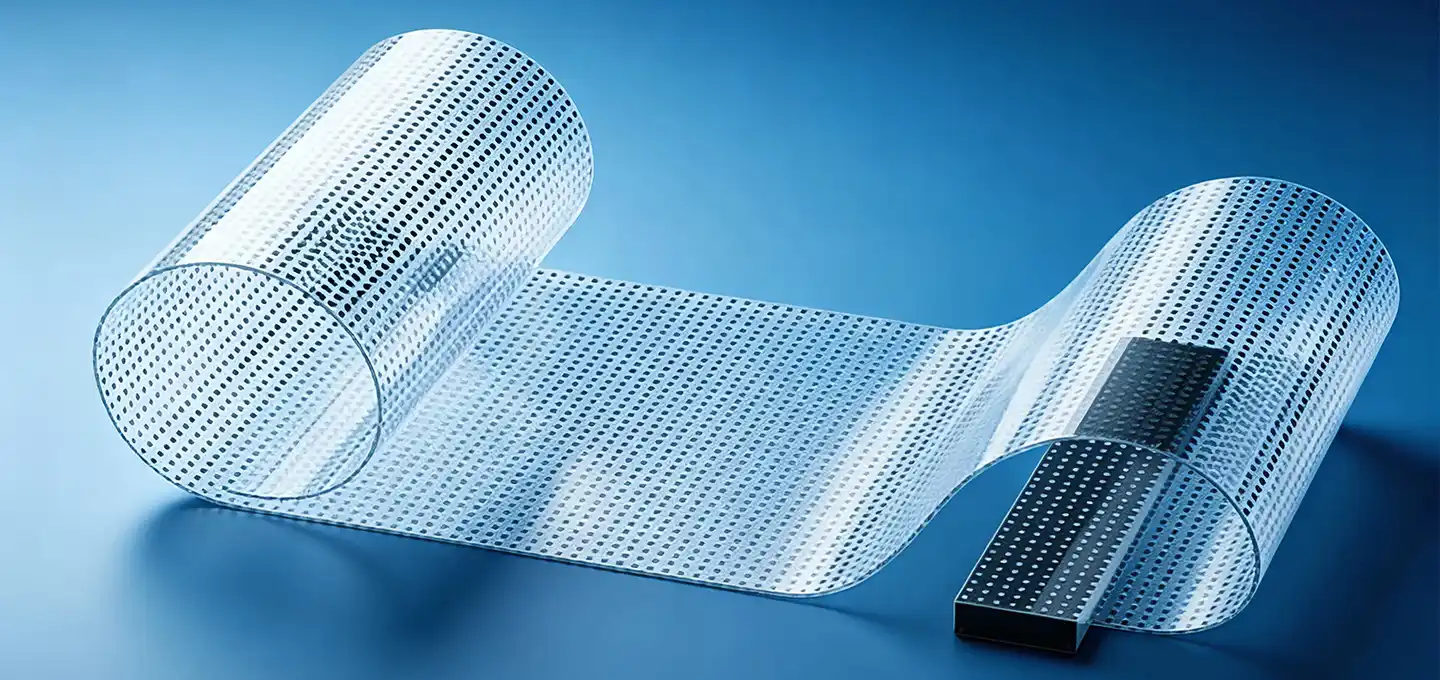

Ultra-Thin and Rollable Flexible Film

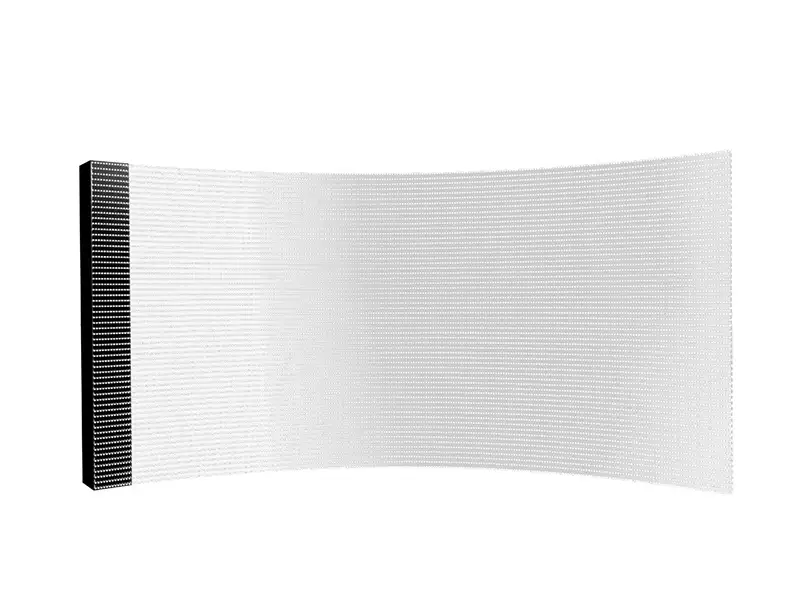

Only 2–3mm thick and as light as 2–3.5kg/m², can be rolled like a poster for storage and transport. Flexible substrate fits curved glass and irregular surfaces without rigid cabinets.
Peel-and-Stick Simple Installation
Adopts self-adhesive sticker design for direct pasting onto glass, no heavy steel structure needed. Just connect power and signal to finish installation, greatly saving labor and time.
High Refresh and Vivid Visual Performance
3840Hz high refresh rate and 16-bit grayscale deliver smooth, flicker-free images. 140°wide viewing angle ensures clear, consistent color from almost any direction.

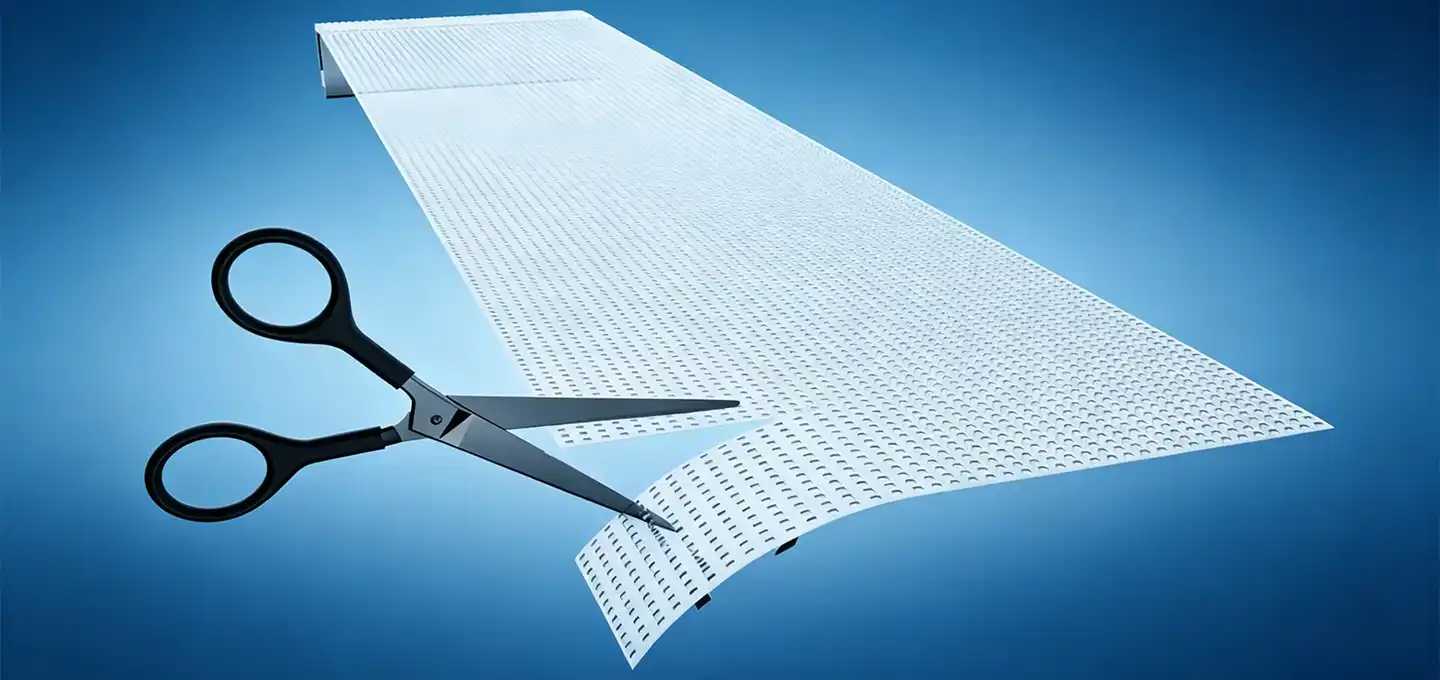

Customizable Shape and Size
Supports tailored cutting and special shaping to match unique window or curtain wall designs. Internal wiring keeps the back clean and tidy for a neat, professional look.
Long Life and Smart Control
Built for ≥100,000 hours lifespan with stable performance in indoor environments. Supports synchronous control, WiFi APP control, and U disk playback for flexible operation.
| LAC Vision Transparent Film Display | ||||||
| Model | JM4040 | JM4080 | JM6060 | JM8080 | JM1010 | |
| Module | Pixel Structure | 1R1G1B | ||||
| LED Packaging | SMD1010 (Integrated LED and Driver) | SMD2121 (Integrated LED and Driver) | ||||
| Pixel Pitch (mm) | 4 | 4-8 | 6 | 8 | 10 | |
| Module Size (L×H) (mm) | 1000×240 | |||||
| Module Resolution (L×H) (dot) | 250×60 | 250×30 | 166×40 | 125×30 | 100×24 | |
| Pixel Density (dot/m²) | 62500 | 31250 | 27556 | 15625 | 10000 | |
| Optical Parameters | Brightness (cd/m²) | 3000 | 3500 | |||
| Transmittance | 85% | 85% | 90% | |||
| Color Temperature (K) | 3200K~8500K (Adjustable) | |||||
| Viewing Angle Control Level | 0-255 levels | |||||
| Viewing Angle | Horizontal: 140° / Vertical: 140° | |||||
| Electrical Parameters | Wiring Method | Internal Wiring (Clean Back Appearance) | ||||
| Signal Interface Type | RJ-45 | |||||
| Peak Power Consumption (W/m²) | ≤800 | |||||
| Average Power Consumption (W/m²) | ≤240 | |||||
| Power Supply Requirements | AC 220V±10%, 50Hz | |||||
| Input Signal | DVI/VGA、Composite Video | |||||
| Processing Performance | Frame Rate (Hz) | ≥60 Hz | ||||
| Refresh Rate (Hz) | 3840 | |||||
| Processing Depth (bit) | 16 | |||||
| Control Method | Synchronization Box (Computer-controlled screen) or Asynchronous Box (WiFi-connected mobile APP control, U disk control) | |||||
| Structural Parameters | Screen Weight (kg/m²) | ≤3.5 | ||||
| Protection Rating | IP30 | |||||
| Usage Parameters | Typical Lifetime (h) | ≥100000 | ||||
| Operating Temperature/Humidity | -20℃~50℃ / 10%~90%RH (no condensation) | |||||
| Storage Temperature/Humidity | -40℃~80℃ / 10%~90%RH (no condensation) | |||||
| Installation Method | Indoor Mounting or Fixed Installation | |||||
