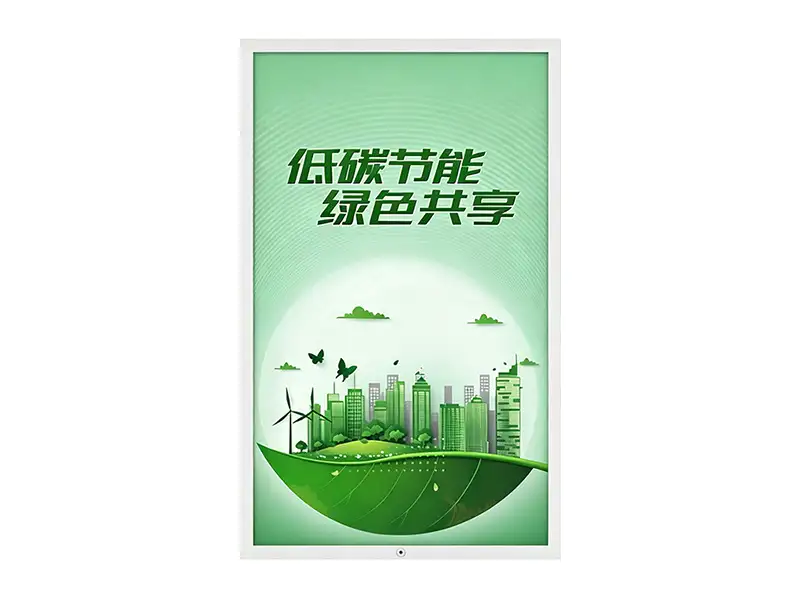

LAC Vision Pillar Series P2.5 Double-sided Light Pole Display V1.1

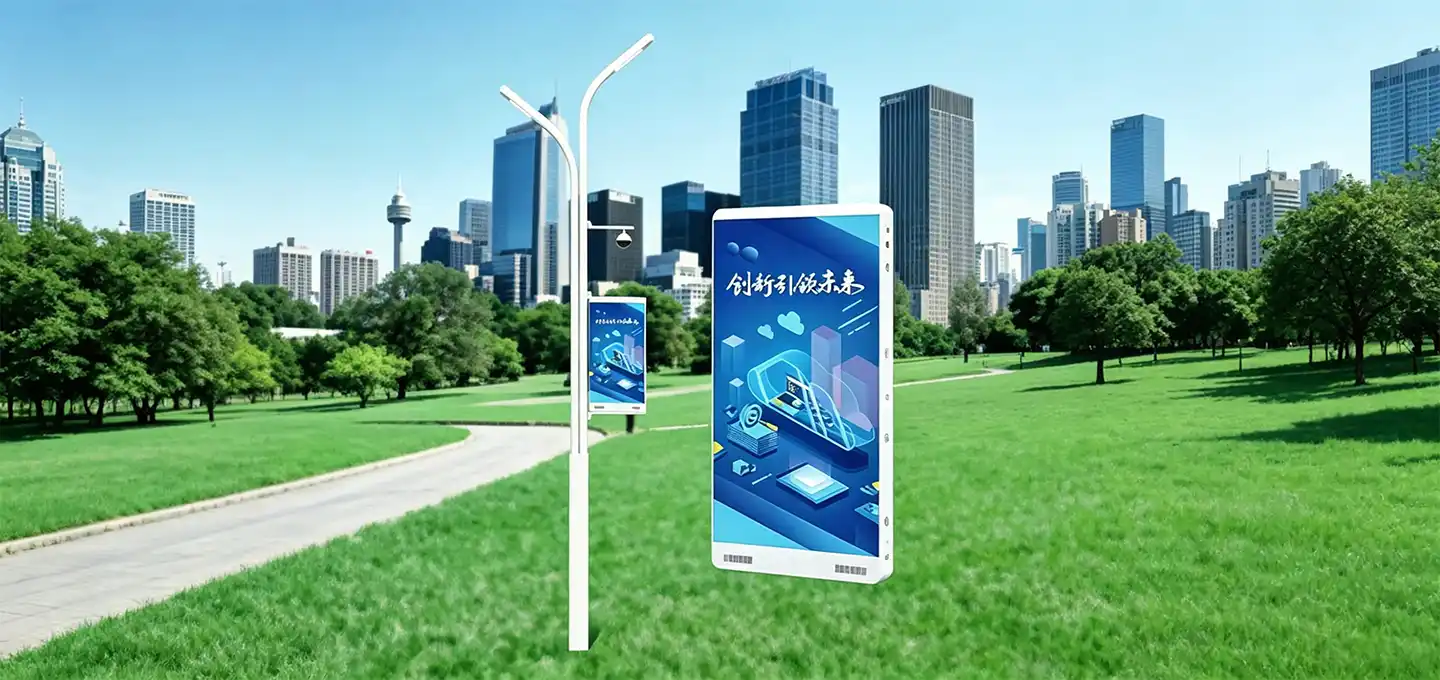

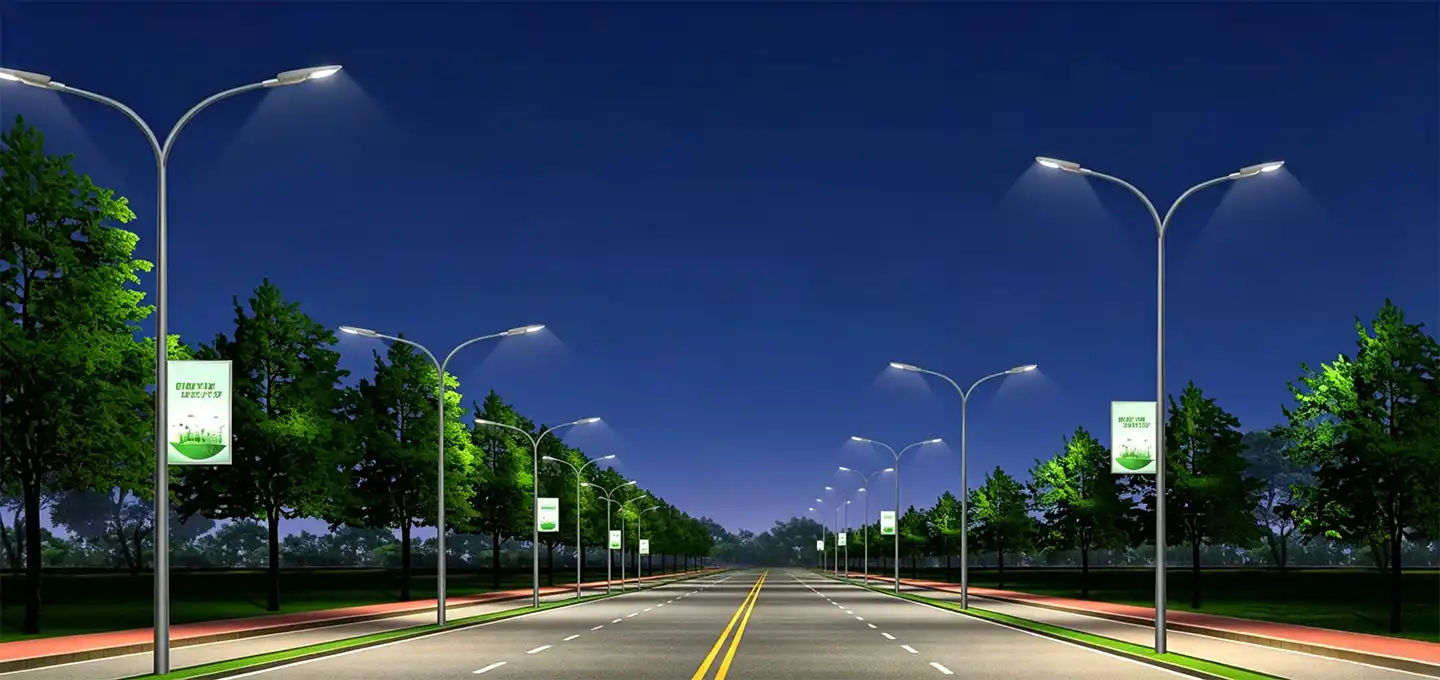

The LAC Vision smart light pole display is an outdoor terminal device integrating internet, IoT, and remote interaction capabilities. It features an elegant appearance, simple structure, and easy installation, making it compatible with smart light poles of various styles and heights. The product offers waterproof, dustproof, and lightning protection features for safety and reliability. With a diverse range of models, it provides customers with multiple personalized options.

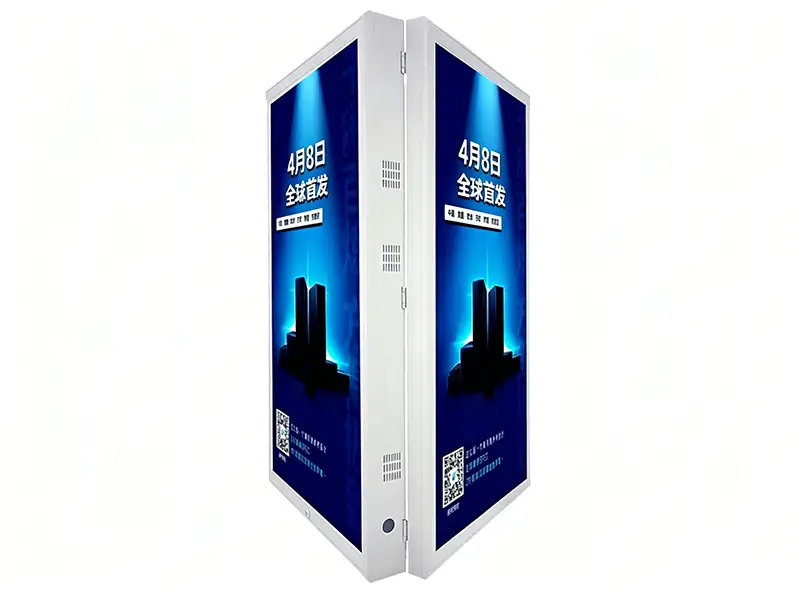

Dual Sided Outdoor Light Pole Display
Adopts P2.5 high definition dual sided design for 360° information delivery in urban areas. IP65 waterproof and dustproof rating ensures stable performance in outdoor environments.
High Brightness and Smart Dimming
Delivers ≥5000cd/m² high brightness for clear visibility under direct sunlight. Supports auto, timing, and manual brightness adjustment to adapt to different ambient lighting.
Powerful Smart Control System
Runs on Android 9.0 with quad core CPU for smooth playback and stable operation. Supports remote cluster management, content publishing, and multi screen synchronous control.
Multiple Communication and Integration
Supports wired Ethernet, WiFi, and 4G for flexible networking. Equipped with RS485 interface to connect environmental sensors for smart city applications.
High Quality Visual and Audio Performance
3840Hz high refresh rate and 16 bit grayscale provide smooth, vivid images. Built in 2×15W speakers offer clear audio for public announcements and advertising.

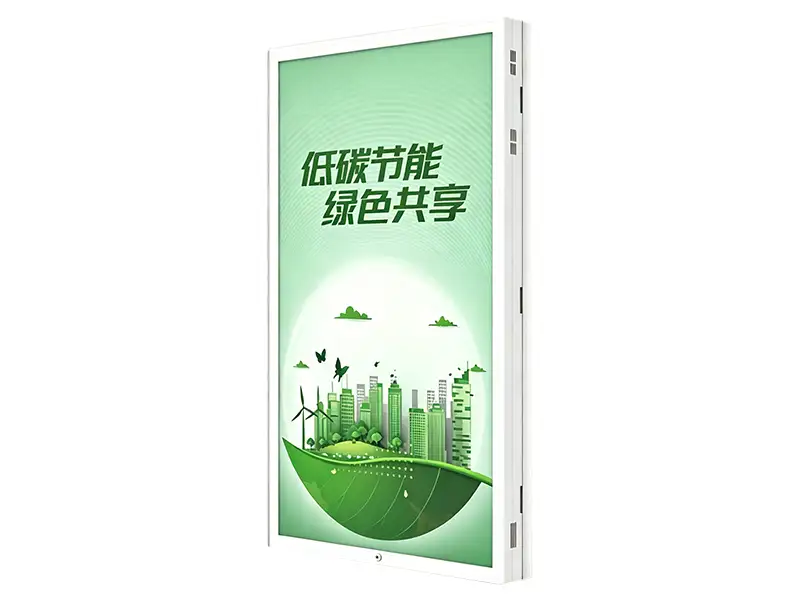

Stable Structure and Easy Installation
Aluminum alloy cabinet is lightweight, durable, and corrosion resistant. Standard bracket design fits most smart light poles, with simple installation and front maintenance.
|
LAC Vision Pillar Series P2.5 Double-sided Light Pole Display |
||||||||
|
Model |
LC15DGP25S55 |
LC15DGP25S60 |
LC15DGP25S70 |
LC15DGP25S75 |
LC15DGP25S85 |
|||
|
Module |
Screen Size (inch) |
55 |
60 |
70 |
75 |
85 |
||
|
Pixel Structure |
1R1G1B |
|||||||
|
LED Package |
SMD1515 |
|||||||
|
Module Pixel Pitch (mm) |
2.5 |
|||||||
|
Module Size (W×H) (mm) |
320×160 |
|||||||
|
Module Resolution (W×H) |
128×64 |
|||||||
|
Pixel Density (dot/m²) |
160000 |
|||||||
|
Display Panel |
Display Surface |
Double-Sided |
||||||
|
Overall Screen Dimensions (W×H×D) (mm) |
730×1370×125 |
890×1370×125 |
890×1690×125 |
1050×1690×125 |
1050×2010×125 |
|||
|
Display Area (W×H) (mm) |
640×1280 |
800×1280 |
800×1600 |
960×1600 |
960×1920 |
|||
|
Unit Weight (kg) |
40 |
45 |
50 |
55 |
60 |
|||
|
Maintenance Method |
Rear Maintenance |
|||||||
|
Protection Rating |
IP65 |
|||||||
|
Cabinet Material |
Aluminum Alloy |
|||||||
|
Recommended Installation Height |
3–3.5m above ground level |
|||||||
|
Optical Parameters |
Pixel Calibration |
Supports pixel-by-pixel brightness and chromaticity calibration |
||||||
|
Brightness (cd/m²) |
>5000 cd/m2, brightness adjustable manually, on schedule, or intelligently |
|||||||
|
Color Temperature (K) |
6500K (adjustable from 2000K to 9300K) |
|||||||
|
Viewing Angle |
Horizontal 140°/ Vertical 140° |
|||||||
|
Luminance Uniformity |
≥98% |
|||||||
|
Chromaticity Uniformity |
Within ±0.003 Cx, Cy |
|||||||
|
Maximum Contrast Ratio |
5000:1 |
|||||||
|
Electrical Parameters |
Total Peak Power Consumption (W) |
≤1120 |
≤1400 |
≤1750 |
≤2100 |
≤2600 |
||
|
Total Average Power |
≤270 |
≤460 |
≤580 |
≤700 |
≤1000 |
|||
|
Power Supply Requirements |
AC 100 ~ 240 V (50/60 Hz) |
|||||||
|
Processing Performance |
Drive Method (Constant Current Drive) |
16S |
||||||
|
Frame Change Frequency |
50/60Hz |
|||||||
|
Refresh Rate (Hz) |
3840 |
|||||||
|
Processing Depth (bit) |
16 |
|||||||
|
System Parameters |
Operating System |
Android 9 |
||||||
|
CPU |
Cortex-A35 Quad-Core,1.5GHz Main Frequency |
|||||||
|
RAM |
1GB |
|||||||
|
Storage |
8GB |
|||||||
|
Supported Media Formats |
Video Support: AVI, MPG, VOB, MKV, RMVB, MP4, TS, FLV, and other mainstream formats. Audio Support: MP3 and other audio formats. Image Support: JPG, BMP, PNG, and other image formats. |
|||||||
|
Device Interface |
USB |
1×USB2.0 |
||||||
|
Audio Input/Output
|
1-channel stereo audio output |
|||||||
|
1000M Ethernet Port |
1 (for communication) |
|||||||
|
Functional Features |
Remote Cluster Control |
Supports cloud based centralized publishing, scheduled power, volume/brightness, remote power cutoff |
||||||
|
External Sensor Connectivity |
Onboard RS485 interface for controlling display brightness,content playback, and power commands via front-end devices,compatible with external 8-element environmental sensor (R69)for displaying environmental data |
|||||||
|
Multiple Communication Methods |
Supports wired, WiFi, and 4G communication modes for flexible on-site deployment |
|||||||
|
Timing/Time Synchronization Function
|
GPS timing/synchronization and NTP automatic time calibration ensure multi-screen playback synchronization |
|||||||
|
Audio Processing |
Built-in 2×15W full-range speakers with customized high-fidelity amplifier |
|||||||
|
Usage Parameters |
Typical Lifespan (h) |
≥100000 |
||||||
|
Operating Temperature/Humidity |
-20℃ ~ 50℃ / 10% ~ 90% RH (no condensation) |
|||||||
|
Storage Temperature/Humidity |
-40℃ ~ 80℃ / 10% ~ 90% RH (no condensation) |
|||||||
|
Installation Method |
Bracket Installation |
|||||||
