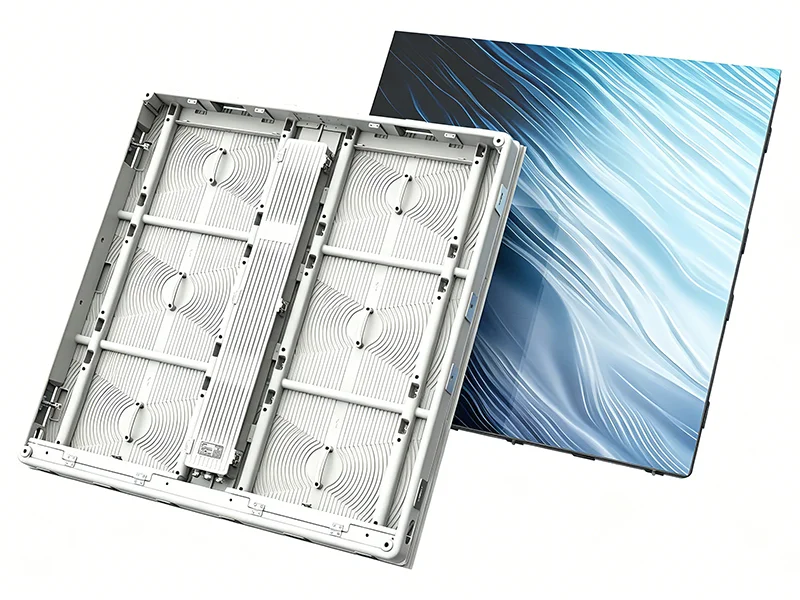

LAC Vision Aura Series Energy-saving Outdoor LED Display V1.3
The LAC Vision outdoor bare-mounted energy-saving cold screens feature high contrast, high refresh rate, wide viewing angles, high fault detection reliability, and front/rear maintenance capabilities. The screens remain clear and vibrant even under direct sunlight, delivering natural and realistic display effects, making them highly suitable for outdoor advertising media.
High-Efficiency Energy-Saving Design
Adopts energy-saving drive technology with low average power consumption, greatly reducing operating costs. Natural air cooling and hollow structure eliminate the need for external cooling equipment.
Super Bright Outdoor Visibility
Delivers 6000–9000 cd/m² high brightness for clear viewing under direct sunlight. Wide color gamut and 5000:1 high contrast ensure vivid, realistic images in any outdoor lighting condition.
Die-Cast Aluminum Stable Cabinet
CNC-processed die-cast aluminum cabinet provides high flatness ≤0.2mm and strong structural stability. Integrated molding ensures long-term durability and deformation resistance in outdoor use.
Ultra-High Refresh and Smooth Display
Supports up to 7680Hz high refresh rate and 16-bit grayscale processing for flicker-free visuals. Eliminates smearing and ghosting, ideal for high-quality outdoor advertising and media playback.
IP66 Waterproof and Harsh Environment Ready
IP66 high protection rating resists water, dust, corrosion, and extreme temperatures. Professional sealing and drainage design ensure stable operation in harsh outdoor environments year-round.

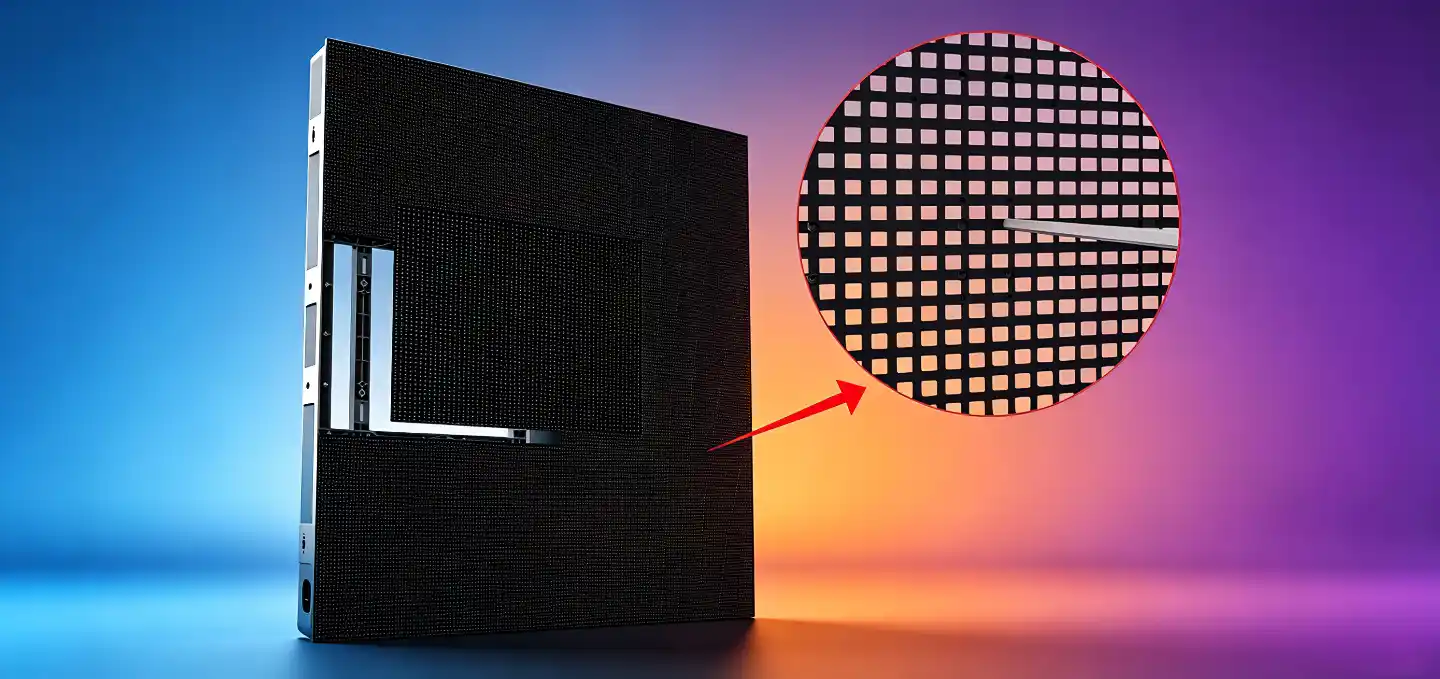

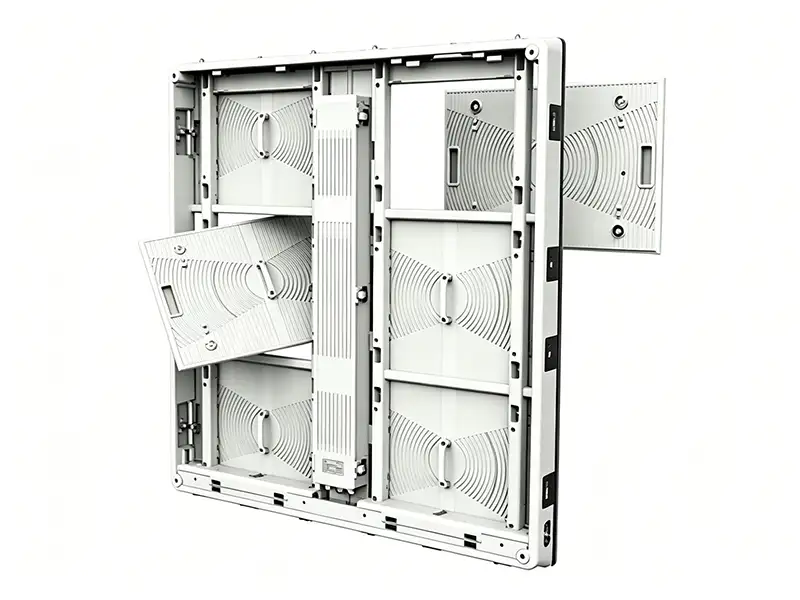

Flexible Splicing and Easy Maintenance
Supports arbitrary size and shape splicing with uniform brightness and color. Front and rear dual maintenance design simplifies installation, repair, and daily upkeep.
| LAC Vision Aura Series Energy-saving Outdoor LED Display | ||||||
| Model | EV9640 | EV9657 | EV9667 | EV9680 | EV96100 | |
| Module | Pixel Structure | 1R1G1B | ||||
| LED Package | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD3535 | |
| Pixel Pitch (mm) | 4 | 5.7 | 6.67 | 8 | 10 | |
| Module Size (W×H) (mm) | 480×320 | |||||
| Module Resolution (W×H) | 120×80 | 84×56 | 72×48 | 60×40 | 48×32 | |
| Pixel Density (dot/m²) | 62500 | 30625 | 22500 | 15625 | 10000 | |
| Cabinet | Unit Module Composition | 2×3 | ||||
| Unit Resolution (W×H) | 240×240 | 168×168 | 144×144 | 120×120 | 96×96 | |

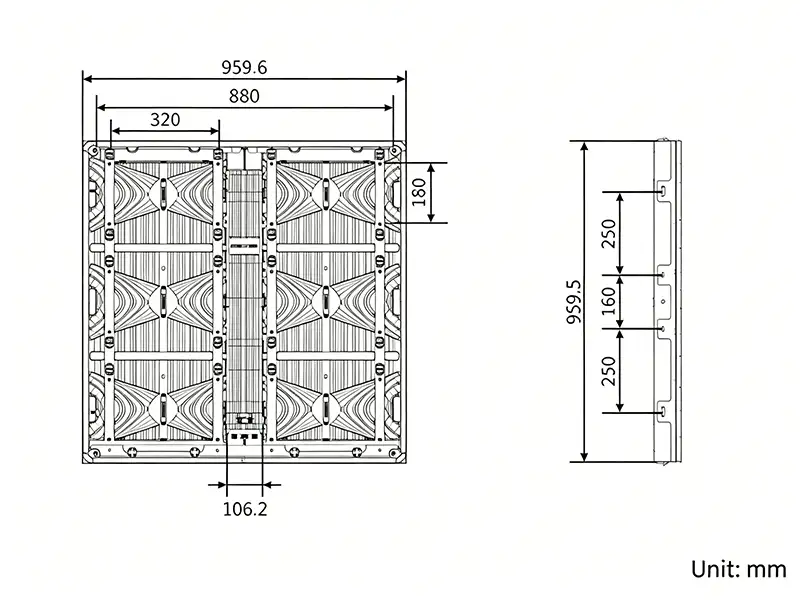

| Unit Size (W×H×D) (mm) | 960×960×88 | |||||
| Unit Weight (kg) | 29.5 | |||||
| Maintenance Method | Front and back maintenance | |||||
| Protection Rating | ≥IP66 | |||||
| Cabinet Material | Die-cast aluminum | |||||
| Flatness (mm) | ≤0.2 | |||||
| Optical Parameters | Pixel Correction | Support point-by-point correction of brightness and chromaticity | ||||
| Brightness (cd/m²) | 6000-9000 (Customization, default 7500/6000) | |||||
| Color Temperature (K) | 9000 (adjustable 2000K~12000K) | |||||
| Viewing Angle | Horizontal 160° / Vertical 120° | |||||
| Brightness Uniformity | ≥98% | |||||
| Chromaticity Uniformity | Within ±0.003 Cx, Cy | |||||
| Maximum Contrast | 5000:1 | |||||
| Electrical Parameters | Peak Power Consumption (W/m²) | ≤520 | ||||
| Average Power Consumption (W/m²) | ≤170 | |||||
| Power Supply Requirements | AC 100~240 V (50/60 Hz) | |||||
| Processing Performance | Drive Mode | 8S | 8S | 6S | 4S | 2S |
| Frame Change Frequency | 50/60 Hz | |||||
| Refresh Rate (Hz) | 3840~7680 | |||||
| Processing Depth (bit) | 16 | |||||
| Usage Environment | Typical Lifespan (h) | ≥100,000 | ||||
| Operating Temp/Humidity | -20℃ ~ 50℃ / 10% ~ 90%RH (no condensation) | |||||
| Storage Temp/Humidity | -40℃ ~ 80℃ / 10% ~ 90%RH (no condensation) | |||||
| Installation Method | Outdoor fixed installation | |||||
