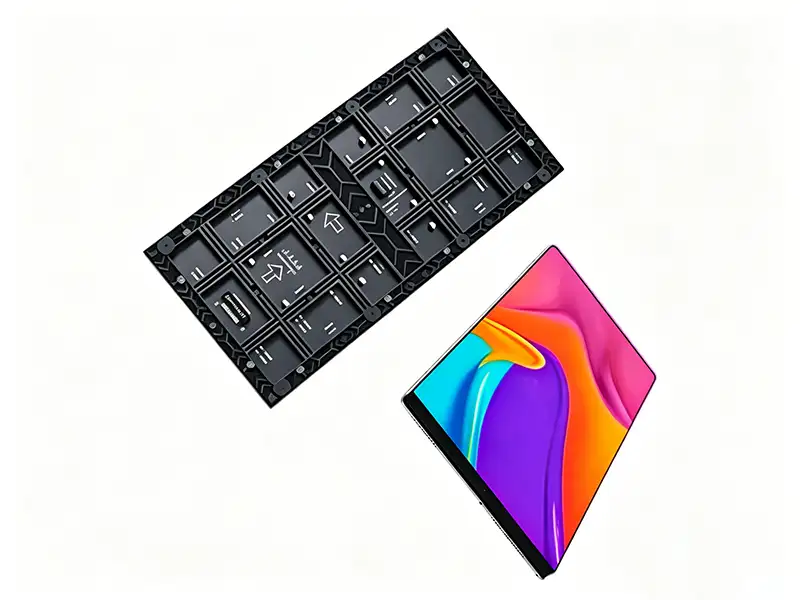

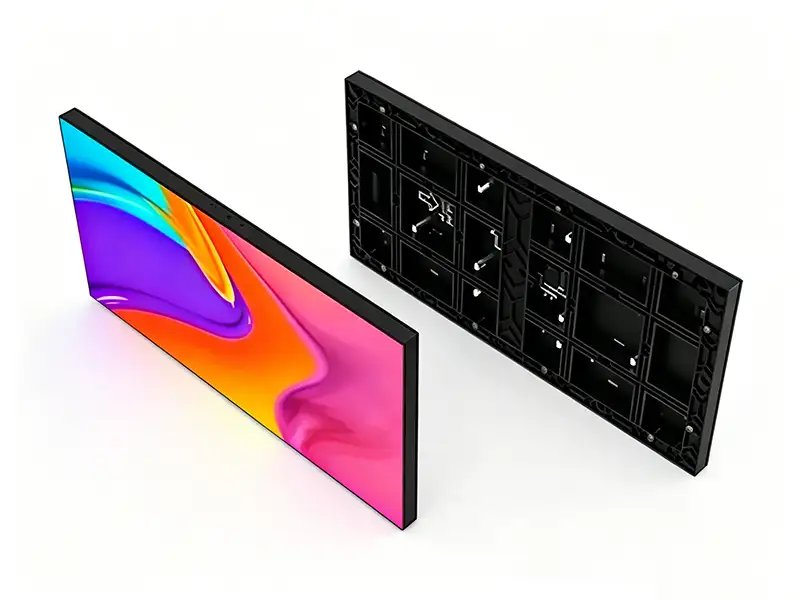

LAC Vision Flux Series Indoor LED Module V1.2
The LAC Vision indoor fine-pitch LED module incorporates advanced HDR digital image technology, delivering a high-definition display with exceptional detail, vibrant and lifelike colors. It accurately renders high-definition images, videos, and complex charts with outstanding clarity, providing an exceptional visual experience. The product features high brightness and a high contrast ratio, ensuring optimal visibility in both darkroom environments and under strong ambient light. Its ultra-wide viewing angle guarantees consistent, high-quality image performance from virtually any perspective. Designed with a strong emphasis on reliability, the module offers a long operational lifespan. The modules support flexible splicing into various shapes. Utilizing precision splicing technology, they achieve a near-seamless effect with natural and smooth image transitions and no visible seams, fulfilling diverse and creative display requirements.
Broadcast-Grade Visual Performance
Equipped with HDR imaging and 14-bit broadcast-grade grayscale for sharper details and vivid colors. High brightness and contrast keep content clear in both dark and bright indoor environments. It delivers professional, lifelike display effects for commercial and conference use.
Ultra-Wide 140°+ Viewing Angle
Offers over 140° ultra-wide viewing angle for consistent color and brightness from any position. Images stay clear and undistorted even at off-angle viewing. Perfect for open spaces, halls, and multi-directional viewing scenarios.

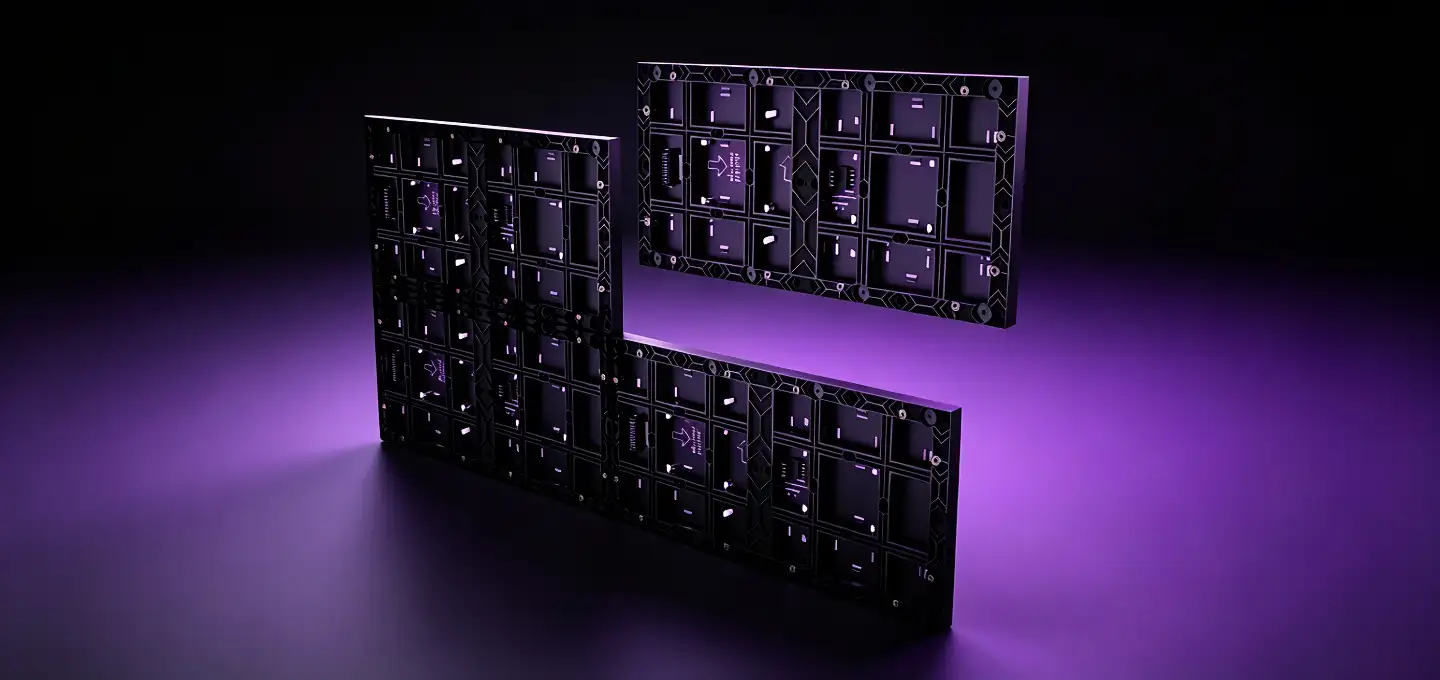

Flexible Seamless Splicing
Standard 320×160mm module supports arbitrary size and shape splicing with near-seamless effect. Precision design ensures smooth image transitions without visible gaps. Modular structure makes installation and layout highly flexible.
High Refresh and Stable Display
Features ≥3840Hz high refresh rate to eliminate flicker and motion blur. Pixel-level calibration maintains long-term color and brightness uniformity. It ensures smooth, stable performance for videos and real-time data.
Durable and Low-Maintenance Design
Built for long service life up to 50,000 hours for reliable 24/7 operation. Supports front maintenance for easy repair without rear access space. High-quality components reduce failure rates and ongoing costs.
Wide Compatibility and Easy Deployment
Works with AC186–264V power for global adaptability. Supports multiple brightness control modes for scene flexibility. Compact structure fits various installation needs in indoor environments.
| LAC Vision Flux Series Indoor LED Module | ||||||
| Model Number | LC10SNP125 | LC12SNP1538 | LC15SNP186 | LC15SNP20 | LC20SNP25 | |
| Module | Pixel Structure | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Package | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | |
| Pixel Pitch (mm) | 1.25 | 1.538 | 1.86 | 2 | 2.5 | |
| Module Resolution (W×H) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 | |

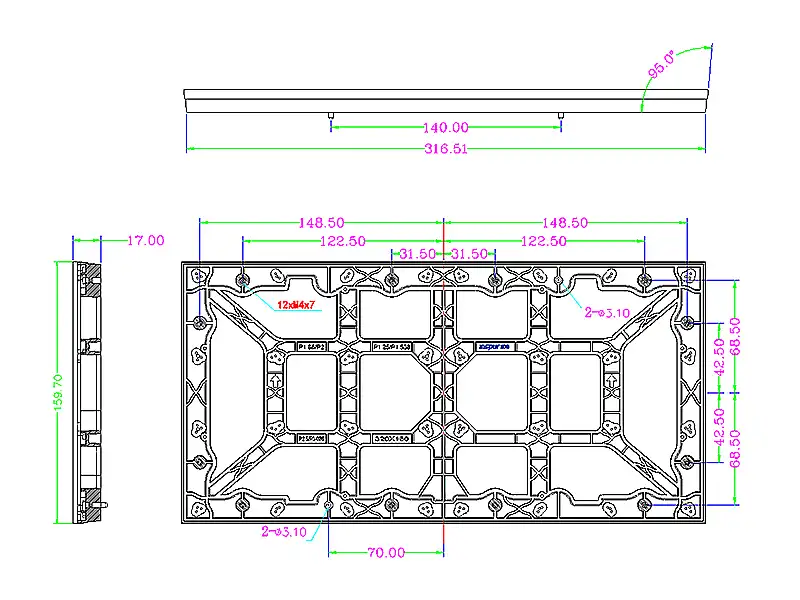

| Module Size (W×H×D) (mm) | 320×160×17 | |||||
| Module Power Consumption (W) | ≤30 | |||||
| Input Voltage | 4.5V ~ 5V | |||||
| Module Weight (kg) | 0.53 | |||||
| Cabinet | Composition of Unit Modules | 3×2 | ||||
| Unit Resolution (W×H) | 512×384 | 416×312 | 344×258 | 320×240 | 256×192 | |
| Cabinet Dimensions (mm) | 640×480×61 | |||||
| Unit Weight (kg) | 4.5 | |||||
| Pixel Density (dot/m²) | 640000 | 422500 | 288906 | 250000 | 160000 | |
| Maintenance Method | Front Maintenance | |||||
| Cabinet Material | Die-Cast Aluminum | |||||
| Flatness | ≤0.1mm | |||||
| Optical Parameters | Pixel Calibration | Pixel-Level Brightness & Color Uniformity Correction | ||||
| Brightness (cd/m²) | 600 | |||||
| Color Temperature | 6500 K (Adjustable from 2000 K to 95000 K) | |||||
| Viewing Angle | Horizontal 140° / Vertical 140° | |||||
| Luminance Uniformity | ≥97% | |||||
| Center-to-Center Pitch Deviation of Emission Points | <3% | |||||
| Maximum Contrast Ratio | 5000:1 | |||||
| Dead Pixel Rate | ≤0.0001, Initial Value: 0 | |||||
| Electrical Parameters | Peak Power Consumption (W) | ≤600 | ||||
| Average Power Consumption (W) | ≤195 | |||||
| Power Supply Requirements | AC186~264V, Frequency 47~63Hz | |||||
| Processing Performance | Scanning Method | 1/64 S | 1/52 S | 1/43 S | 1/40 S | 1/32 S |
| Frame Change Frequency | 50/60Hz | |||||
| Refresh Rate | ≥3840Hz | |||||
| Processing Depth (bit) | 14 | |||||
| Brightness Control | Manual/Automatic/Programmable Control | |||||
| Usage Parameters | Typical Lifespan (h) | ≥50000 | ||||
| Operating Temperature/Humidity | -10℃ ~ 40℃ / 10% ~ 65% RH (no condensation) | |||||
| Storage Temperature/Humidity | -20℃ ~ 50℃ / 10% ~ 70% RH (no condensation) | |||||
