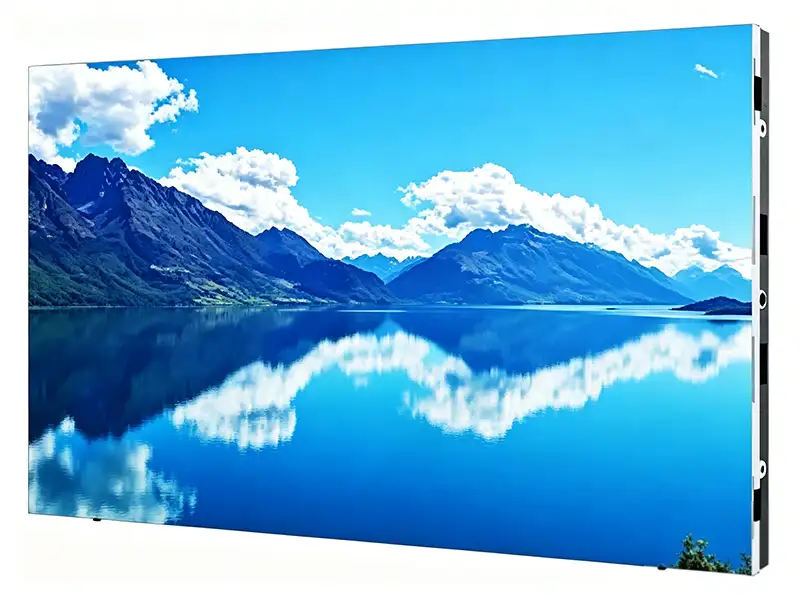

LAC Vision Nova Series SMD Indoor LED Display V1.3
The LAC Vision fine-pitch LED engineering display is not merely an upgrade over traditional large-pitch LED screens, but a solution tailored for high-end indoor applications. With its exceptional display performance, it is reshaping the market landscape. This product boasts high brightness that effectively counteracts ambient light interference, ensuring clear visibility. Its high resolution, high contrast ratio, and wide color gamut deliver an ultra-clear visual experience with finer details and more lifelike colors. The rigid connection design guarantees more stable signal transmission. Featuring slim cabinets and excellent flatness, it achieves truly seamless splicing, making it the ultimate solution for large-scale displays in the micro-display era.
Native 16:9 Slim Cabinet Design
Adopts a 600×337.5mm die‑cast aluminum cabinet with a native 16:9 aspect ratio for perfect 4K/8K video wall matching. Slim 31.5mm thickness saves installation space while ensuring strong structure and high precision.
High‑Quality Visual Performance
Delivers high brightness, 5000:1 contrast ratio, and wide color gamut for clear, layered images. Supports broadcast‑level grayscale processing to restore rich details and realistic color performance.
Ultra‑Wide Viewing Angle and Uniformity
Features 160° horizontal and vertical viewing angles for consistent color and brightness from any position. ≥98% luminance uniformity ensures a smooth, seamless visual effect across the entire screen.
High Refresh and Ghost‑Free Display
Nanosecond response time eliminates motion blur and ghosting in fast‑moving content. Compatible with camera shooting without flicker, ideal for conference, broadcast, and control room scenarios.

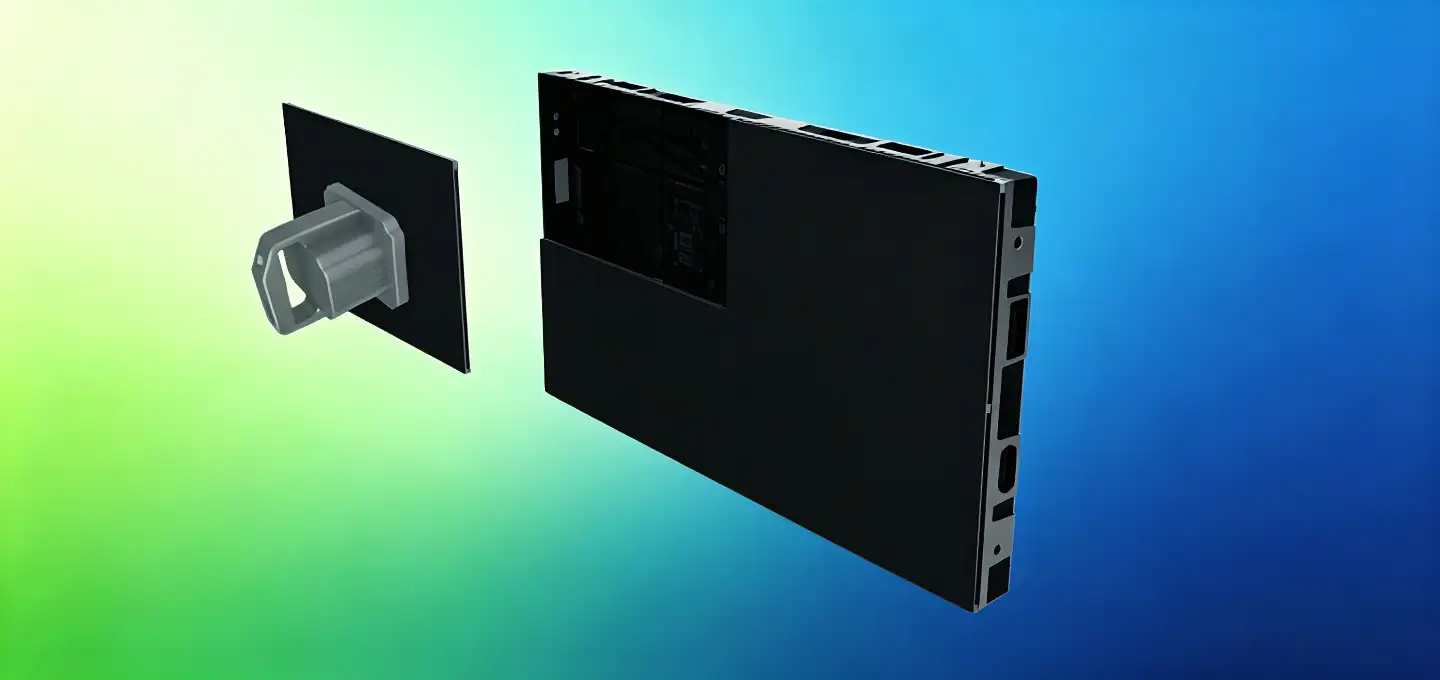

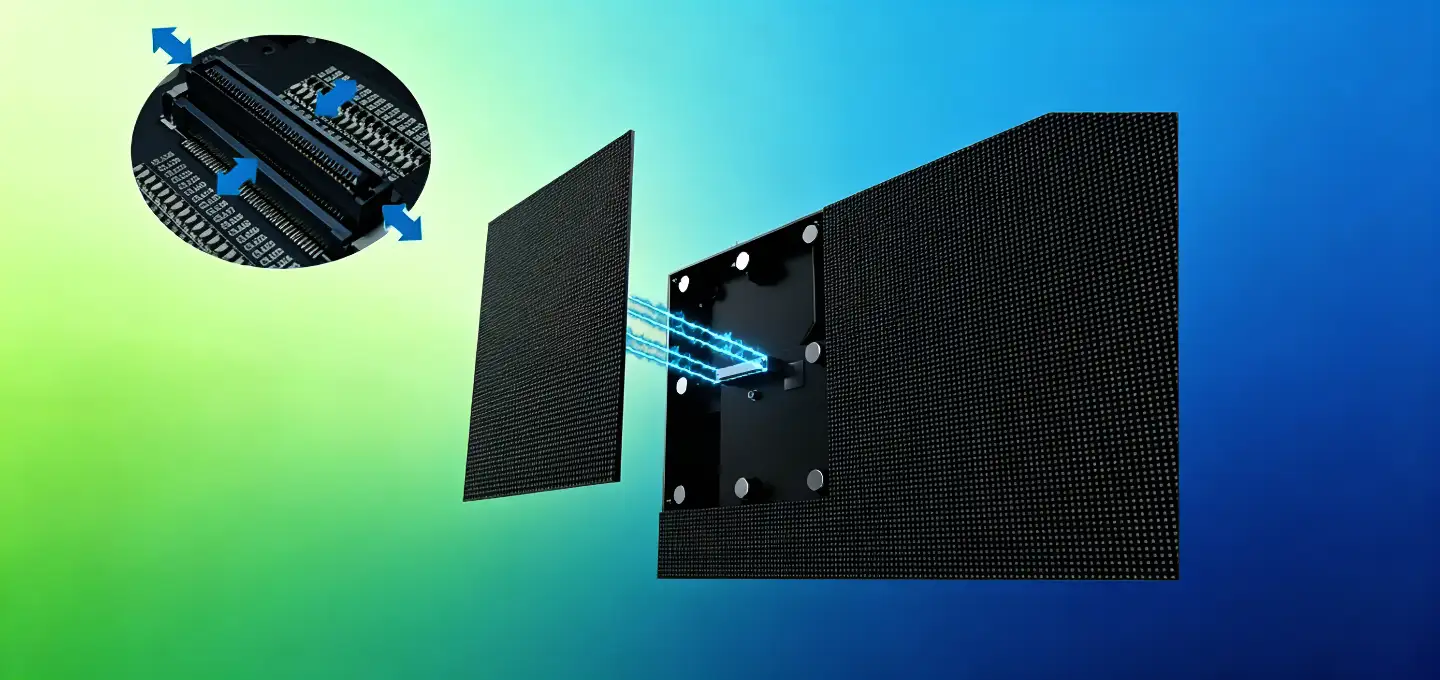

Front Maintenance and Easy Installation
Full front maintenance design requires no rear service space, greatly simplifying installation and repair. Modular structure and ≤0.1mm flatness enable seamless large‑screen splicing.
Stable and Long‑Life Operation
Built for up to 100,000 hours service life with low failure rate. Efficient cooling reduces heat and noise, supporting stable 24/7 indoor use in various engineering environments.
| LAC Vision Nova Series SMD Indoor LED Display | ||||
| Model | IV6312D | IV6315D | IV6319D | |
| Module Composition | Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Package | SMD1010 | SMD1212 | SMD1515 | |
| Pixel Pitch (mm) | 1.25 | 1.5625 | 1.875 | |
| Module Resolution (W×H) | 240×135 | 192×108 | 160×90 | |
| Module Size (W×H) (mm) | 300×168.75 | |||
| Cabinet | Cabinet Module Composition | 2×2 | ||
| Unit Resolution (W×H) | 480×270 | 384×216 | 320×180 | |
| Unit Size (W×H×D) (mm) | 600×337.5×31.5 | |||
| Unit Weight (kg) | 4.5kg | |||
| Pixel Density (dot/m²) | 640000 | 409600 | 284444 | |
| Maintenance Method | Front Maintenance | |||
| Cabinet Material | Die-Cast Aluminum | |||
| Flatness | ≤0.1mm | |||
| Optical Parameters | Pixel Calibration | Supports Pixel-by-Pixel Luminance and Chromaticity Correction | ||
| Brightness (cd/m²) | 600 | |||
| Color Temperature (K) | 6500 (Adjustable from 2000K to 9500K) | |||
| Viewing Angle | Horizontal 160° / Vertical 160° | |||
| Luminance Uniformity | ≥98% | |||
| Chromaticity Uniformity | Within ±0.003 Cx, Cy | |||
| Maximum Contrast Ratio | 5000:1 | |||
| Dead Pixel Rate | ≤0.0001, 0 at Factory Setting | |||
| Electrical Parameters | Peak Power Consumption | ≤430W | ||
| Average Power Consumption | ≤135W | |||
| Power Supply Requirements | AC 100-240V (50/60Hz) | |||
| Processing Performance | Driving Method (Constant Current) | 1/60 S | 1/54 S | 1/45 S |
| Frame Change Frequency | 50/60Hz | |||
| Refresh Rate (Hz) | ≥3840 | |||
| Processing Depth (bit) | 14 | |||
| Brightness Control | Manual/Automatic/Programmable Control | |||
| Usage Parameters | Typical Lifespan (h) | ≥100000 | ||
| Operating Temperature/Humidity | -10℃ ~ 40℃ / 10% ~ 80% RH (no condensation) | |||
| Storage Temperature/Humidity | -20℃ ~ 60℃ / 10% ~ 85% RH (no condensation) | |||
