LAC Vision LED Holographic Phantom Screen V1.1
The LED Holographic Phantom Screen not only incorporates all the advantages of conventional outdoor high-definition LED displays but also minimizes urban aesthetic concerns. Since it is mostly installed behind glass curtain walls, it does not impact the surrounding environment even during daytime non-operational hours. Furthermore, adopting a novel format of indoor advertising with outdoor visibility, it effectively bypasses the complexities of outdoor advertising approval processes. This product is available in two series: integrated LED-driver and separated LED-driver configurations.
Ultra High Transparency and Aesthetic Design
Offers 55%–90% visual transparency without blocking indoor lighting or ruining the building’s exterior look. It works invisibly behind glass and keeps the urban aesthetic tidy during non operating hours.

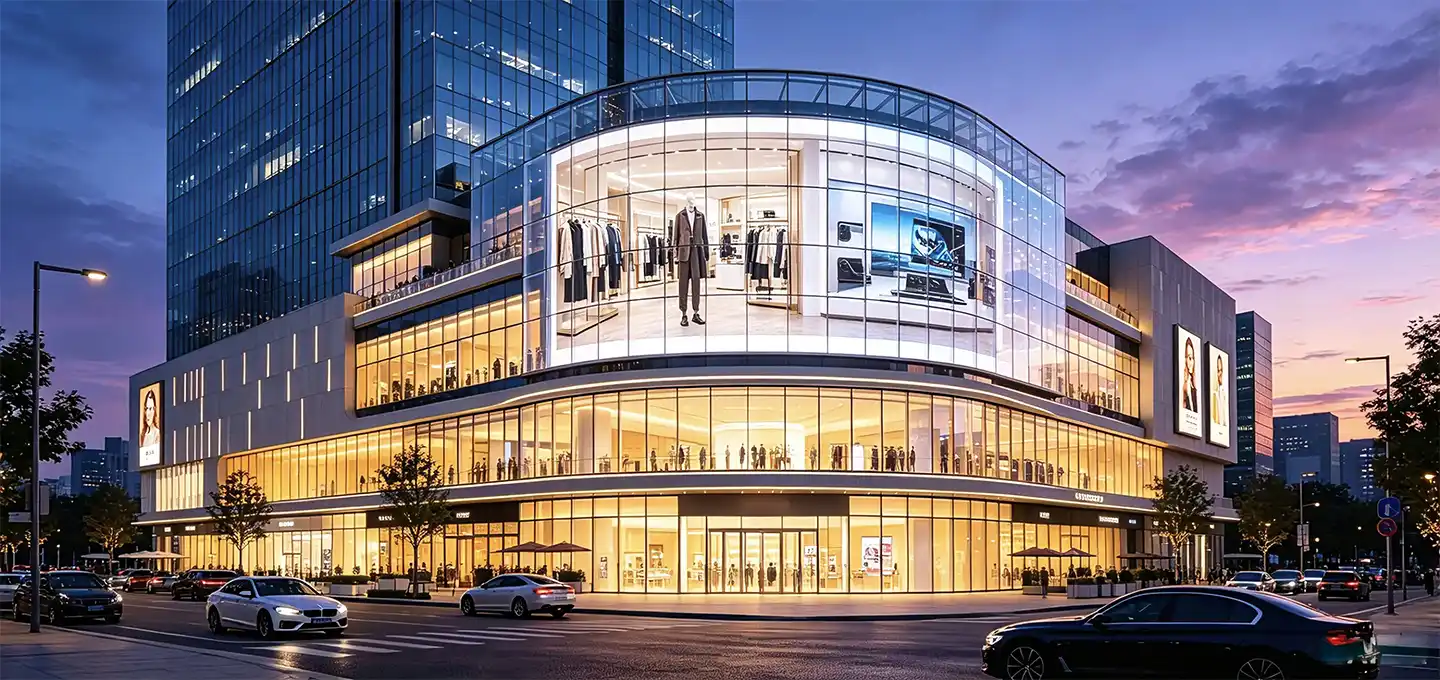

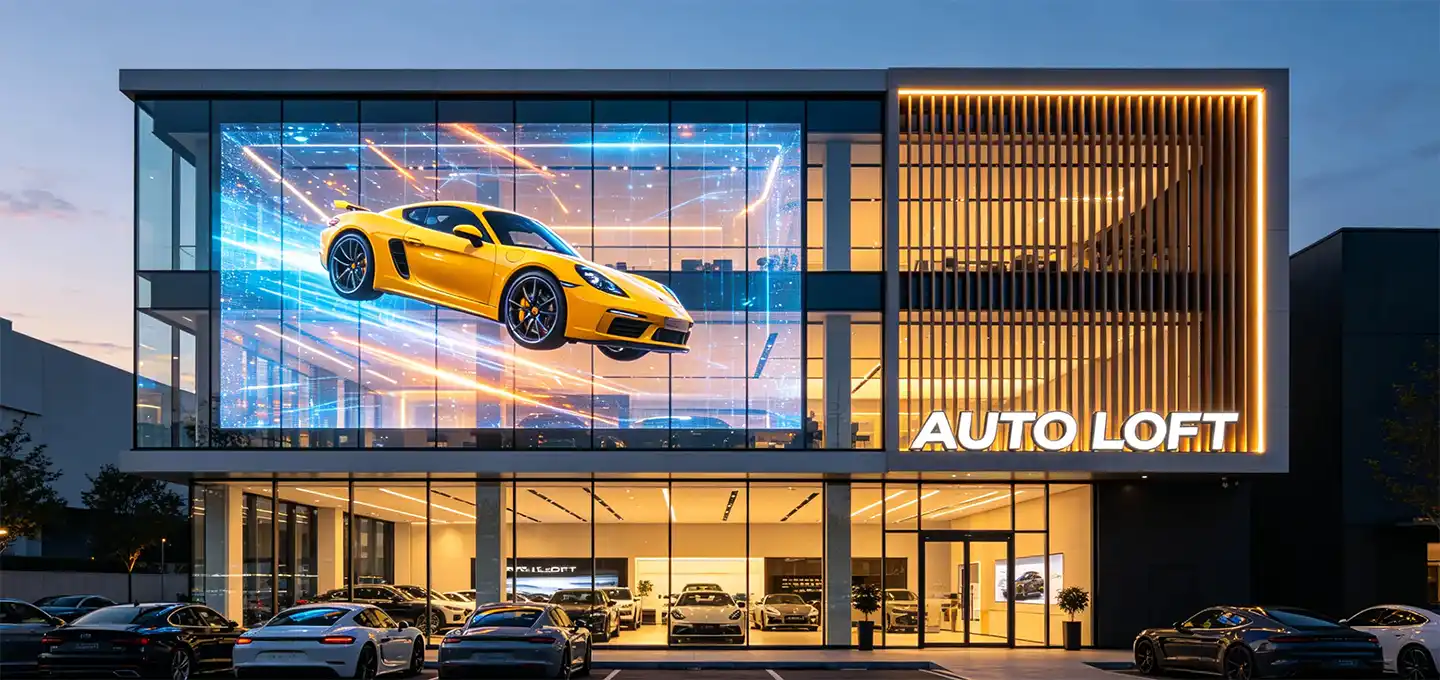

Glass Wall Friendly and Easy Installation
Designed for direct mounting behind glass curtain walls with no heavy steel structure required. Indoor maintenance is fast and safe, greatly cutting installation and long term operating costs.
Energy Saving and Efficient Cooling
Uses natural heat dissipation with no extra air conditioning or cooling systems. It consumes over 30% less energy than traditional LED displays while maintaining stable performance.

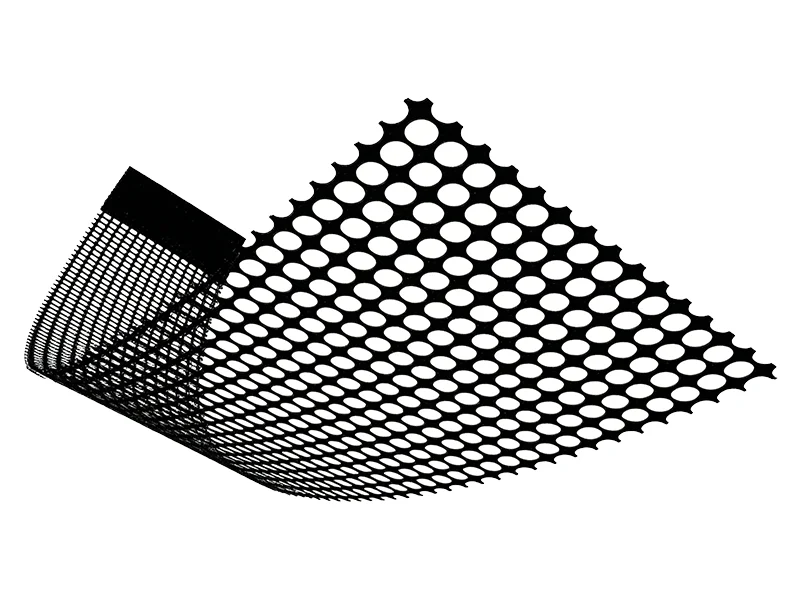

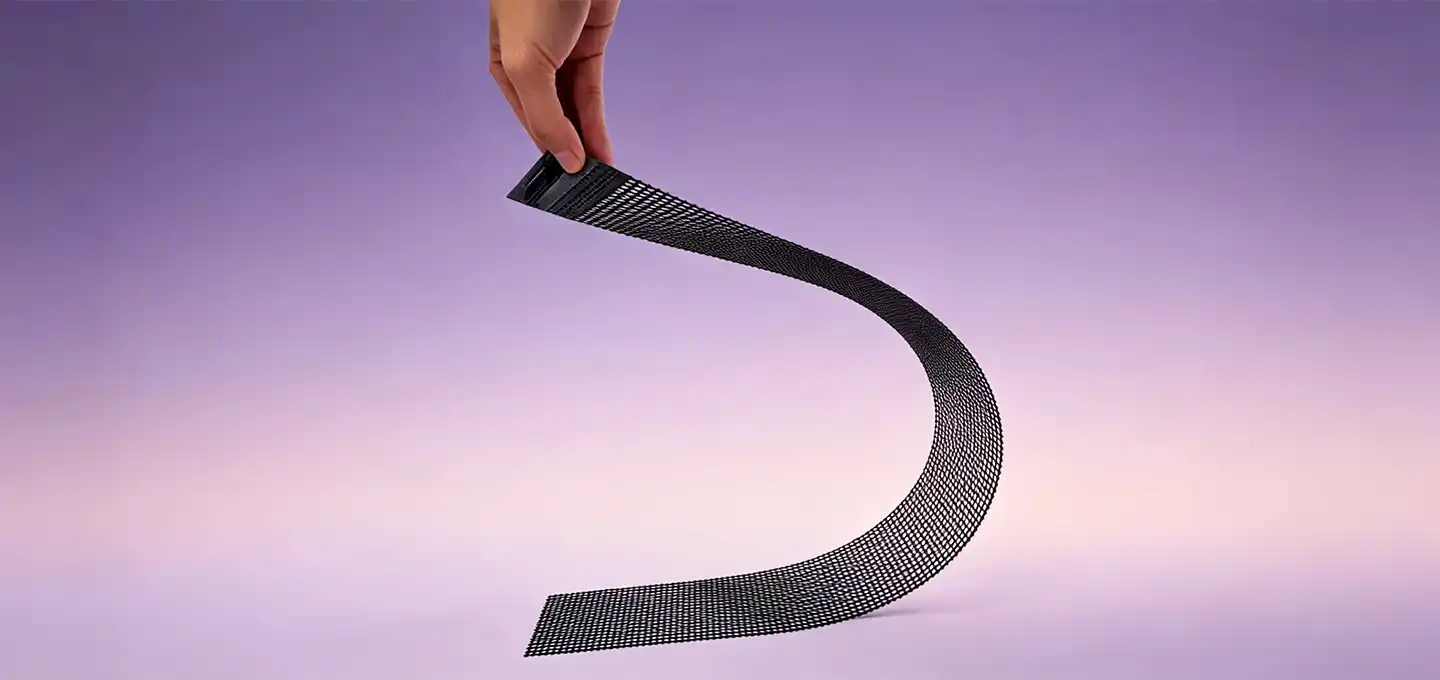

Flexible and Bendable for Curved Surfaces
Supports bending and fitting onto curved building facades and glass walls. It adapts to diverse architectural shapes without redesigning circuit layouts.
Integrated and Separated Driver Options
Available in both integrated and separated driver models to match different project needs. The slim and lightweight structure (under 5kg/m²) makes transportation and setup highly efficient.
High Definition and Wide Angle Visual Effect
Delivers 12–16 bit high grayscale and ≥140° wide viewing angle. Brightness ranges from 1500–4000 cd/m² for clear, vivid advertising content visible from outdoor viewpoints.
|
LAC Vision LED Holographic Phantom Screen |
||||
|
Product Model |
LCH250-I |
LCHP390-I |
LCHP625-I |
LCH0P1040-I |
|
Lamp Model |
SMD1515 |
SMD2121/1717 |
SMD2121 |
SMD2121 |
|
Density (dot/m²) |
16000 |
65410 |
25600 |
9216 |
|
Module Size (W×H) (mm) |
125×1500 |
125×1500、250×1500 |
200×1500、250×1500 |
250×1500 |
|
Weight (KG/m²) |
<5 |
<3.5 |
<3.5 |
<3.5 |
|
Transparency (%) |
55 |
70 |
80 |
90 |
|
Brightness (cd/m²) |
1500-4000 |
1500-4000 |
1500-4000 |
1500-4000 |
|
Maximum Power (W/m²) |
700 |
800 |
600 |
600 |
|
Average Power (W/m²) |
210 |
300 |
180 |
180 |
|
Operating Voltage (V) |
DC 5V |
|||
|
Grayscale Level (bit) |
12~16 |
|||
|
Protection Rating |
IP30 |
|||
|
Viewing Angle |
Horizontal ≥140°, Vertical ≥140° |
|||
|
Input Voltage (V) |
AC95V~240V |
|||
|
Operating Temperature |
-20~65℃ |
|||
|
Operating Humidity |
10%~90%RH |
|||
|
Lifetime (h) |
100000 |
|||
|
Scan Mode |
Static |
|||
|

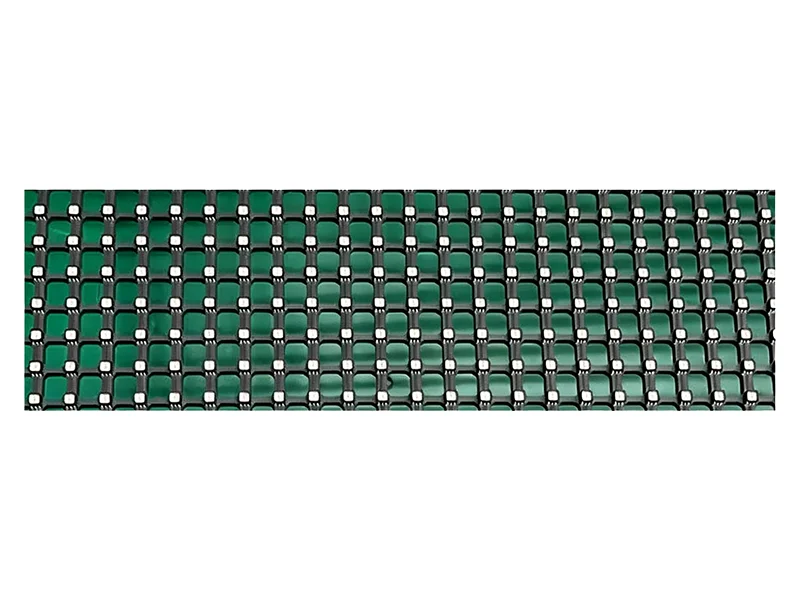

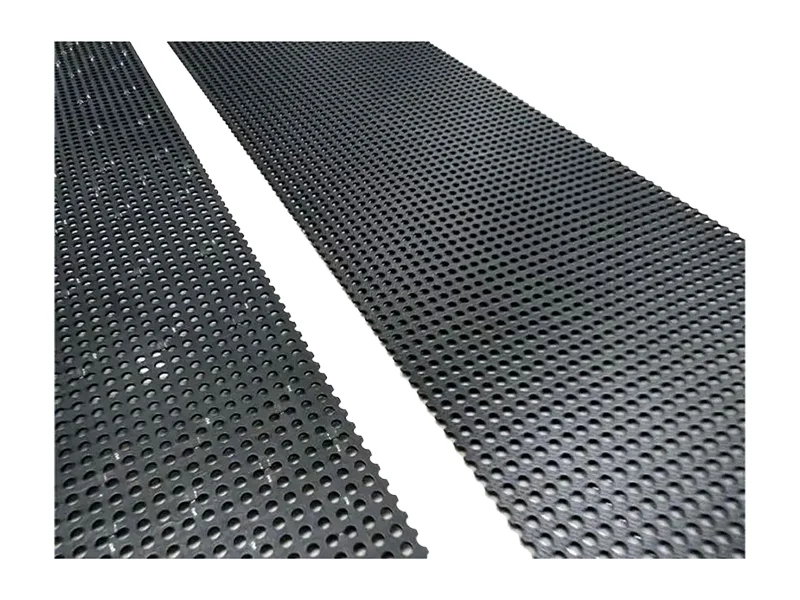

Screen Composition |
Hollowed-out PCB board |
|||
|
Installation Method |
Surface Mounting, Suspension Mounting, Fixed Installation, Supports custom cutting and bending to any size |
|||
|
Maintenance Method |
Front/Rear Maintenance |
|||
|
LED Holographic Phantom Screen (Separated LED-Driver Configuration) |
|
|
Product number |
LCHP390-D |
|
Pixel Pitch (W×H)(mm) |
3.9×3.9 |
|
LED Lamp |
SMD1921, 1R1G1B |
|
Pixel Density (dot/m²) |
65536 |
|
Maximum Power (w/m²) |
800 |
|
Average Power (w/m²) |
260 |
|
Display Luminance (cd) |
1500-4000 |
|
Scan Count |
8S |
|
Visual Transparency |
75% |
|
Refresh Rate(Hz) |
3840 |
|
Module Size (W×H) |
1500×250 |
|
Module Resolution |
386×64 |
|
Cabinet Material |
Aluminum power housing |
|
Cabinet Color |
Black |
|
Grayscale Level (bit) |
16 |
|
Weight (KG/m²) |
Approx. 5 |
|
Viewing Angle |
140°(H)/140°(V) |
|
Input Voltage |
100-240V / 200-240V |
|
Operating Voltage |
AC 5V |
|
Temperature(℃) |
-10～40 |
|
Humidity(RH) |
10%～90% |
|
Lifetime |
Theoretical 50,000–100,000 hours |
|
Protection Rating |
IP20 |
|
Installation Method |
Surface mounting, customized per application environment |
