LAC Vision LED Mesh Screen V1.0

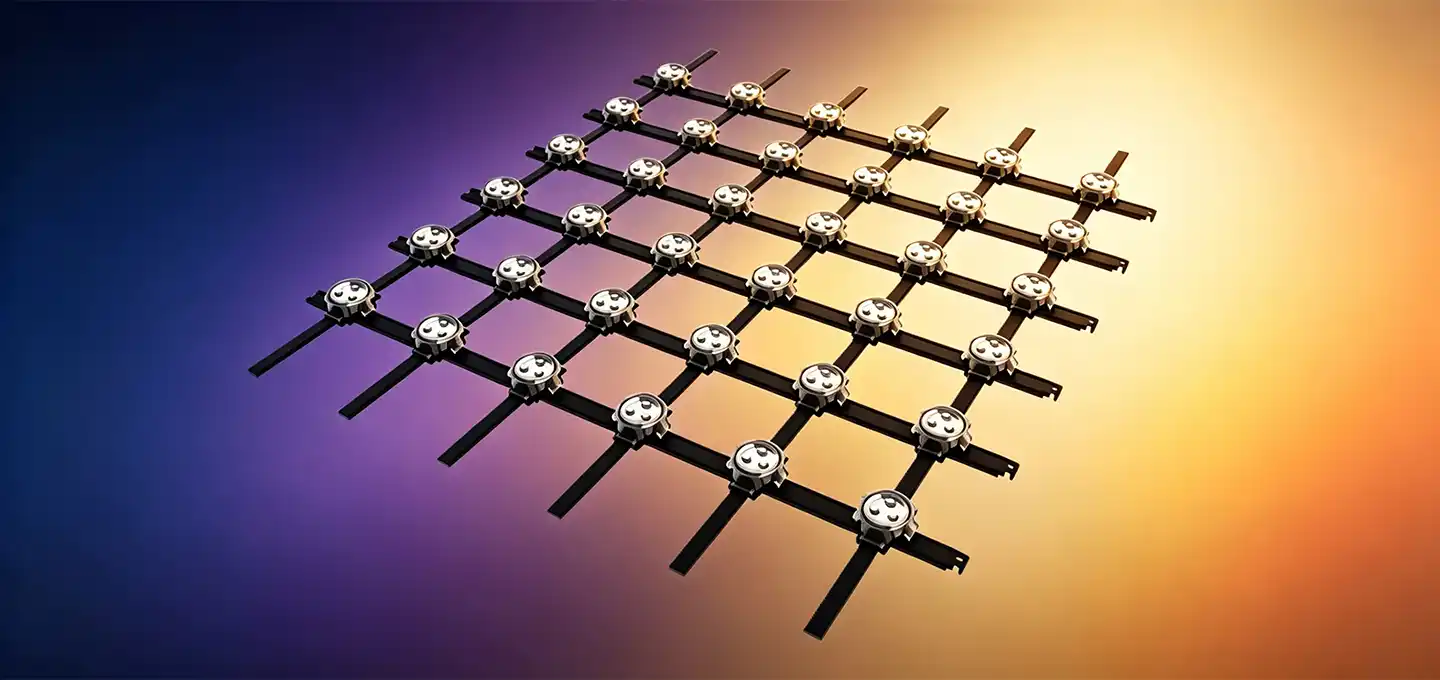

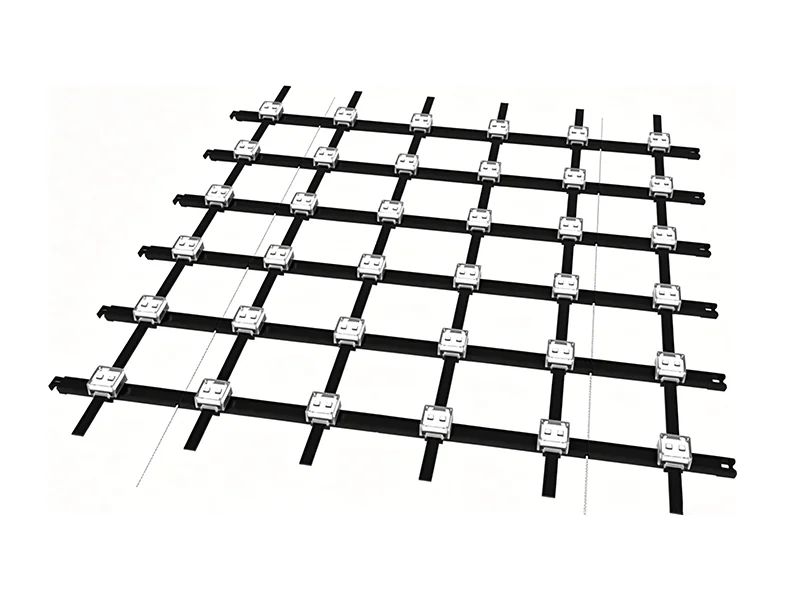

LED Mesh Screen is a specialized display formed by mounting LED lamps on a mesh structure. Its most distinctive feature is its high void ratio, which allows wind and light to pass through, resulting in extremely low wind resistance. This makes it highly safe and widely used in applications such as building facades and stage backdrops, where it can create massively dynamic visuals with strong visual impact. Due to the physical gaps between the LED lamps, it is best viewed from a distance to achieve an overall stunning visual effect.
High Void Ratio and Low Wind Resistance
Open mesh structure delivers ultra-high transparency and greatly reduces wind pressure. Ideal for building facades, stage backgrounds, and large outdoor installations with high safety requirements.
Parallel Single-Bus Signal System
Adopts differential DMX512 driver with stronger signal transmission than traditional 4-wire systems. Supports breakpoint continuation to ensure stable playback even if individual pixels fail.
High Refresh and Flicker-Free Performance
Over 5000Hz high refresh rate eliminates flicker in low grayscale conditions. Perfect for camera shooting in live events, stages, and broadcast scenarios.
IP67 Waterproof and Outdoor Durable
IP67 full protection rating resists rain, dust, humidity, and extreme temperatures. Built for long-term outdoor use with up to 50,000 hours of service life.
Flexible Pixel and Shape Customization

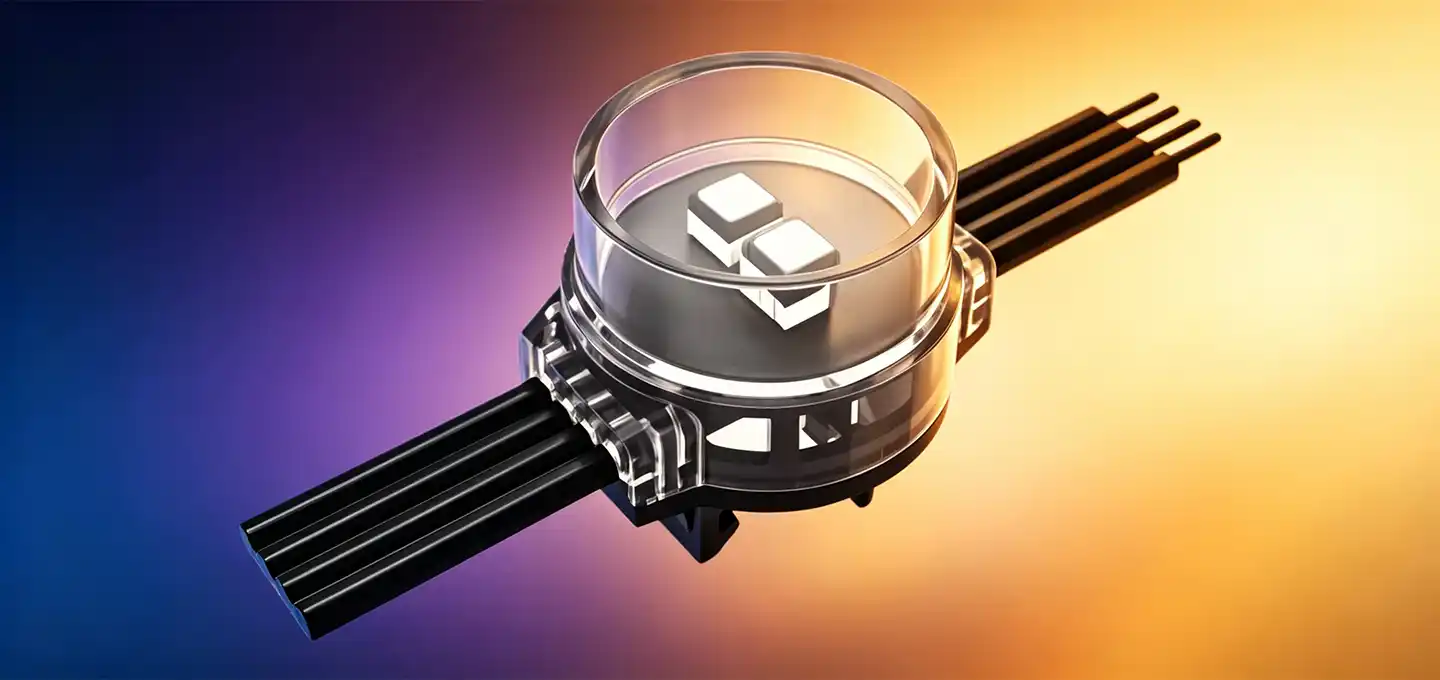

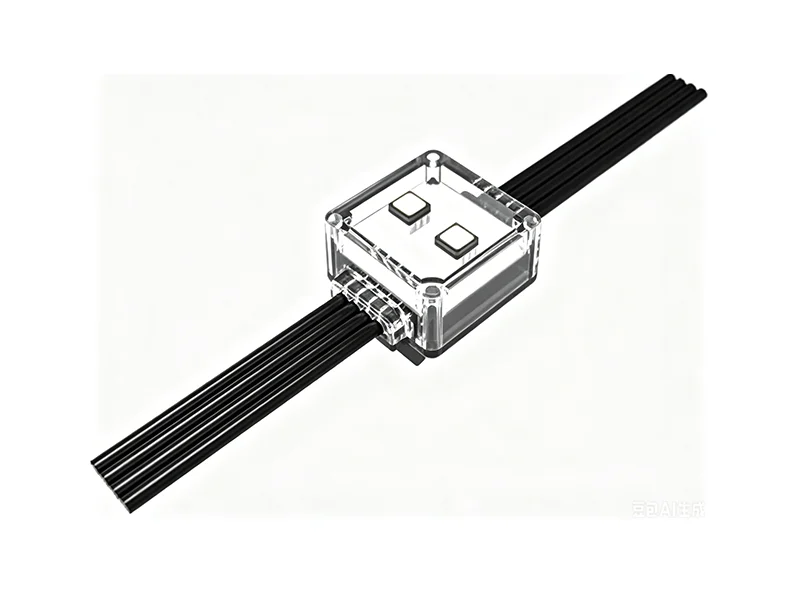

Supports square/round lamp points and adjustable pixel pitches (P30/P50/P75 etc.). Customizable vertical dimensions fit various creative facade and stage designs.
Energy-Efficient and Lightweight
Low power consumption at 0.68–1.8W per pixel reduces operating cost. Ultra-lightweight design minimizes structural load and simplifies installation.
|
LAC Vision LED Mesh Screen |
|||||
|
Model |
LCW2222F450 |
LCW2024F440 |
LCW3040F450 |
LCW2222Y450 |
LCM3236Y450 |
|
Lamp Brand |
SMD3535/5050 |
SMD3535/2727 |
SMD3535/5050 |
SMD3535/5050 |
SMD3535/5050 |
|
Horizontal Dimension (mm) |
450 |
440 |
500 |
450 |
500 |
|
Vertical Dimension (mm) |
Customizable |
||||
|
Power (W/PCS) |
RGB:0.68; RGBW:0.8 |
RGB:0.68; RGBW:0.8 |
RGB:1.5; RGBW:1.8 |
RGB:0.68; RGBW:0.8 |
RGB:0.72; RGBW:1 |
|
Average Power Consumption |
Half of Peak Power |
||||
|
Operating Voltage |
DC12V |
DC12V |
DC24V |
DC12V |
DC12V |
|
Pixel Pitch |
Supports integer multiples of P30/P50/P75 spacing |
Supports integer multiples of P55 spacing |
Supports 2x multiples of P50/P60/P75 spacing |
Supports integer multiples of P30/P50/P75 spacing |
Supports 2x multiples of P50/P60/P75 spacing |
|
Pixel Configuration |
1RGB /2RGB /2RGBW |
1RGB /2RGB / 2RGBW /3RGB/ 4RGB /3RGBW / 3RGB+1W |
|||
|

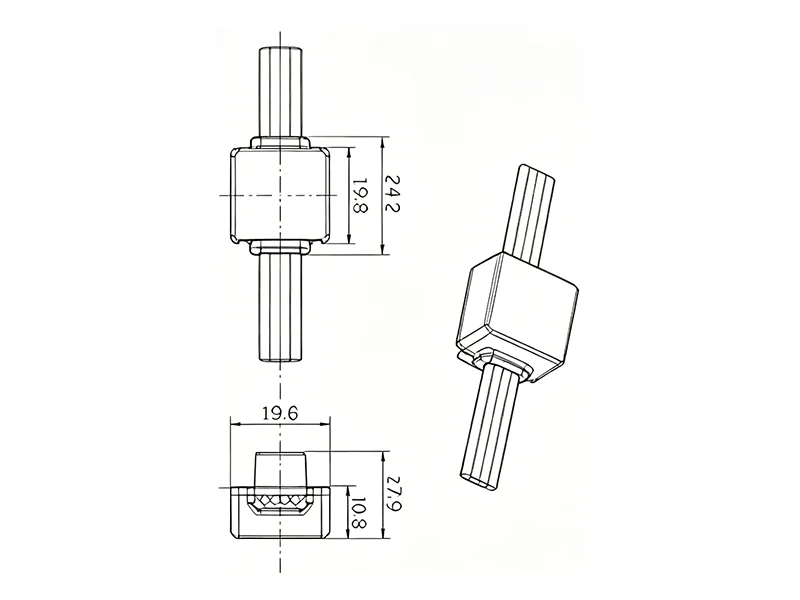

Lamp Point Size (mm) |
22×22 |
22×24 |
30×40 |
Diameter22 |
32.5×36.2 |
|
Unit Resolution (mm/Pixel Pitch) |
450 |
440 |
450 |
450 |
450 |
|
Pixel Density (dot/m²) |
1110 (P30-30) |
330 (P55-55) |
100 (P100-100) |
1110 (P30-30) |
100 (P100-100) |
|
Brightness (cd/pcs) |
>5cd/pcs |
>5cd/pcs |
>15cd/pcs |
>5cd/pcs |
>15cd/pcs |
|
Beam Angle |
120° |
||||
|
Grayscale Level |
256 / 4096 / 65536 levels selectable |
||||
|
Refresh Rate (Hz) |
>5000 |
||||
|
Control Method |
DMX512, Breakpoint Continuation (RGBW not supported) |
||||
|
Transparency Rate |
1 - (Total pixels per unit area × 0.00064) |
||||
|
Protection Rating |
IP67 |
||||
|
Operating Temperature (°C) |
-20~50 |
||||
|
Service Life (h) |
≥50000 |
||||
|
Weight |
Pixel Point 12g/PCS |
Pixel Point 12g/PCS |
Pixel Point 27g/PCS |
Pixel Point 12g/PCS |
Pixel Point 15g/PCS |
|
Relevant Certifications |
Currently Unavailable |
||||
|
LED Mesh Screen |
||||
|
Model |
LCW2222F500 |
LCW3040F500 |
LCW2222Y500 |
LCW3236Y500 |
|
Lamp Brand |
SMD3535/5050 |
|||
|
Horizontal Dimension (mm) |
500 |
|||
|
Vertical Dimension (mm) |
Customizable |
|||
|
Power (W/PCS) |
RGB:0.68; RGBW:0.8 |
RGB:1.5; RGBW:1.8 |
RGB:0.68; RGBW:0.8 |
RGB:0.72; RGBW:1 |
|
Average Power Consumption |
Half of Peak Power |
|||
|
Operating Voltage |
DC12V |
|||
|
Pixel Pitch |
Supports integer multiples of P31.25/ P41.67/P50/P55/ P71.43 spacing |
Supports 2x multiples of P41.67/P50/P55 /P62.5/P71.43 spacing |
Supports integer multiples of P31.25/ P41.67/P50/P55/ P71.43 spacing |
Supports 2x multiples of P50/P60/P75 spacing |
|
Pixel Configuration |
1RGB/2RGB/2RGBW |
1RGB/2RGB/2RGBW /3RGB/4RGB /3RGBW/3RGB+1W |
||
|
Lamp Point Size (mm) |
22×22 |
30×40 |
Diameter22 |
32.5×36.2 |
|
Unit Resolution (mm/Pixel Pitch) |
500 |
|||
|
Pixel Density (dot/m²) |
1024 (P31-31) |
100 (P100-100) |
1024 (P30-30) |
100 (P100-100) |
|
Brightness (cd/pcs) |
>5 |
>15 |
>5 |
>15 |
|
Beam Angle |
120° |
|||
|
Grayscale Level |
256/4096/65536 levels selectable |
|||
|
Refresh Rate (Hz) |
>5000Hz |
|||
|
Control Method |
DMX512, Breakpoint Continuation (RGBW not supported) |
|||
|
Transparency Rate |
1 - (Total pixels per unit area × 0.00064) |
|||
|
Protection Rating |
IP67 |
|||
|
Operating Temperature (°C) |
-20℃~50 |
|||
|
Service Life (h) |
≥50000 |
|||
|
Weight |
Pixel Point 16g/PCS |
Pixel Point 27g/PCS |
Pixel Point 16g/PCS |
Pixel Point 15g/PCS |
|
Bracket 23g/PCS |
Bracket 23g/PCS |
Bracket 23g/PCS |
Bracket 26g/PCS |
|
|
Relevant Certifications |
Currently Unavailable |
|||
